4 Layer Rigid Flex Printed Circuit Board With FR4+PI EING Insdutrial PCB
  • 4 Layer Rigid Flex Printed Circuit Board With FR4+PI EING Insdutrial PCB
  • 4 Layer Rigid Flex Printed Circuit Board With FR4+PI EING Insdutrial PCB

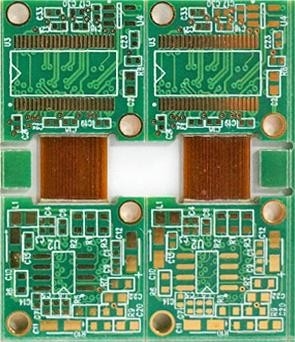

4 Layer Rigid Flex Printed Circuit Board With FR4+PI EING Insdutrial PCB

Place of Origin China
Brand Name GT
Certification UL,SGS, ISO90001, TS16949, ISO13485
Model Number Rigid flex PCB
Product Details
Layer:
4 Layer+ 2layer
Materail:
FR4+ PI
Surface Finish:
Immersion Gold
Application:
Industrial PCB
Board Thickness:
1.6mm
Highlight:

EING Rigid Flex Printed Circuit Board

,

Insdutrial Rigid Flex Printed Circuit Board

,

Rigid Flex 4 Layer PCB

Payment & Shipping Terms
Minimum Order Quantity
According to custpmer's demand
Price
Negotiation
Packaging Details
MBB package
Delivery Time
5-10 days
Payment Terms
T/T
Supply Ability
1m2 with 7 days
Product Description

Rigid-Flex Board (rigid-flex board) is made of a combination of rigid and flexible boards. The rigid pcb can be assembled, and the flexiable pcb can be bent and connected to reduce the trouble of joints and the volume of the product in pcb manufacturing, and increasing the reliability of the interconnection. It is also called Flex-rigid printed circuit board.

The application of rigid-flex boards brings multiple benefits, such as saving circuit board space, eliminating the need for connectors and soldering with hot-press tin, and simplifying the product assembly process. Although the price of rigid-flex boards is higher, but they have a wide range of uses. They can be customized according to specific requirements and support high-speed stack up design, making them particularly popular in industrial applications. In addition to military applications, the lightweight of rigid-flex boards are also used widely in aviation and medical equipment.

Here are some applications of rigid-flex boards:

1. Mobile phones

2. Laptops

3. Computer tomography scanners

4. Smart wearable devices

5. Rectifiers

6. ABS detectors

7. Digital cameras

8. Computer station servers

9. USB and Ethernet interfaces

10. Bar-code scanners

Golden Triangle Group Ltd. can provide you with rigid-flex pcb manufacturing and pcb assembly, including commercial applications, high reliability, or military-grade specifications for printed circuit boards. We have obtained relevant quality certifications such as ISO9001, ISO13485, ISO14001, TS16949 to guarantee the quanlity of printed circuit board.
