HASL Lead Free PCB Fr4 Base Material Polyimide Flex PCB Rigid

Basic Information
Base Material: Fr-4, Fr-5, High-Tg, Halogen Free, Rogers, Board Thickness: 0.8~1.0~1.2~1.6~2.0~2.5~3.0~3.2mm
Number Of Layers: 2-4-6-8-10-12-16-20Layer Min. Line Width/Spacing: 3/3MIL
Surface Finishing: HASL(lead Free) / Immersion Gold /osp / Immersion Tin/Immersion Silver Copper Thickness: 1~3 Oz
Min. Hole Size: 4MIL

HASL Lead Free PCB


Lead Free PCB Fr4

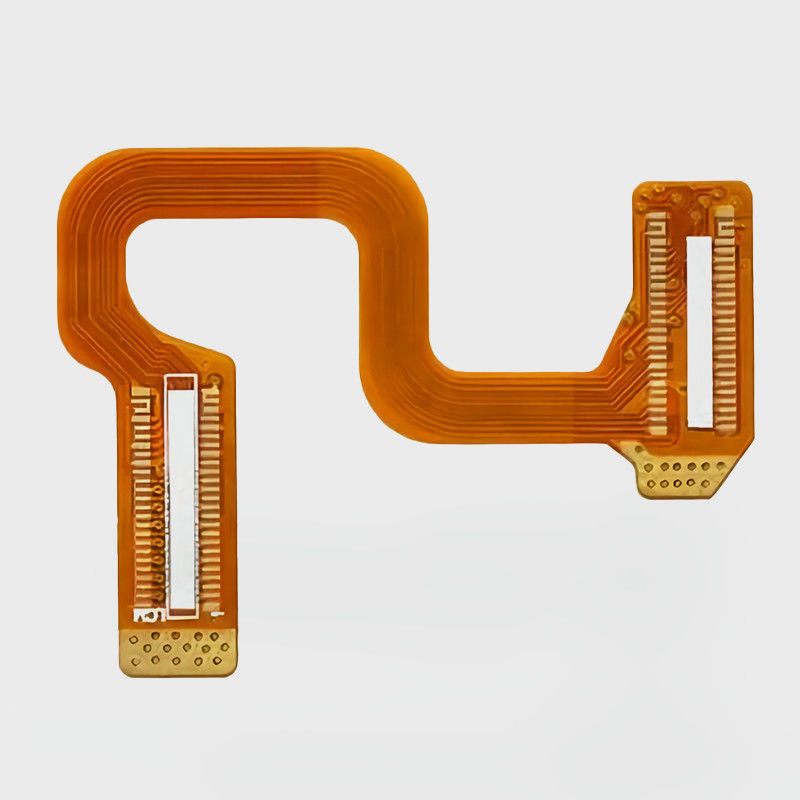

Polyimide Flex PCB

Polyimide Rigid Flex PCB Fr4 Base Material HASL Lead Free Surface Finishing


Production Introduction:


Rigid flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application.


Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application.


Rigid-Flex PCBs offer many advantages over traditional PCBs, making them a great choice for any application that requires flexibility, durability, and efficiency.




Rigid flexible PCBs offer a wide array of applications, ranging from military weaponry and aerospace systems to cell phones and digital cameras.

In consumer products, rigid flex doesn't just maximize space and weight but greatly improves reliability.Rigid flex PCBs can be used to benefit nearly all advanced electrical applications including testing equipment, tools and automobiles.

The Golden Triangle Group is a leading rigid flex PCB manufacturer, and we have been providing solutions to customers around the world for years. Our rigid flex circuit boards are designed to meet the highest standards of quality and reliability, and we are always looking for ways to improve our China rigid flex PCB products and services.
