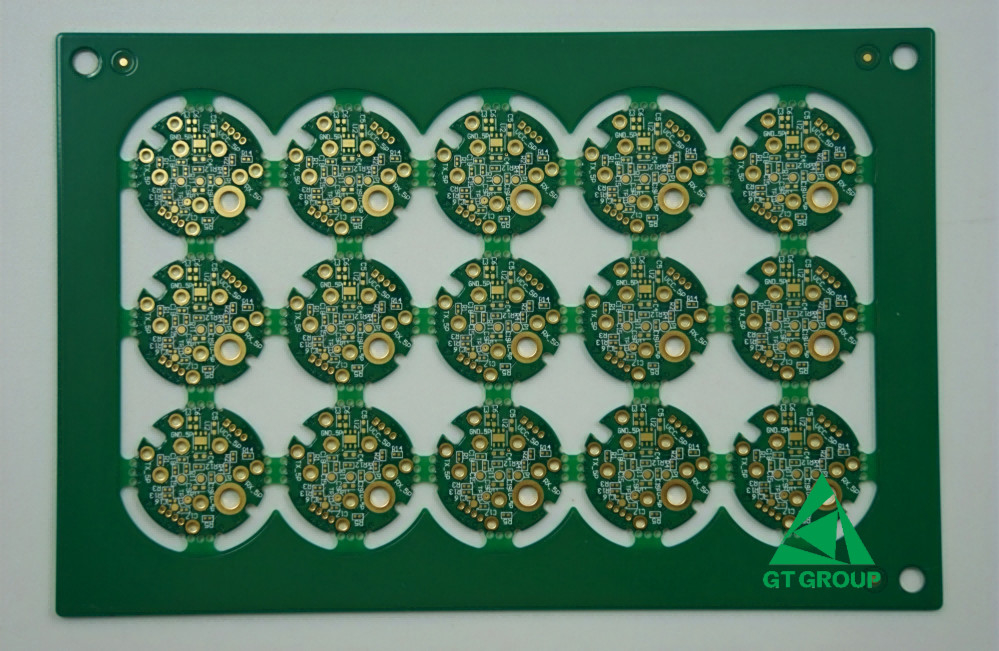

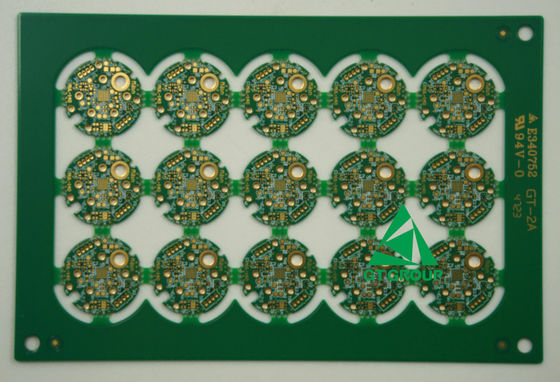

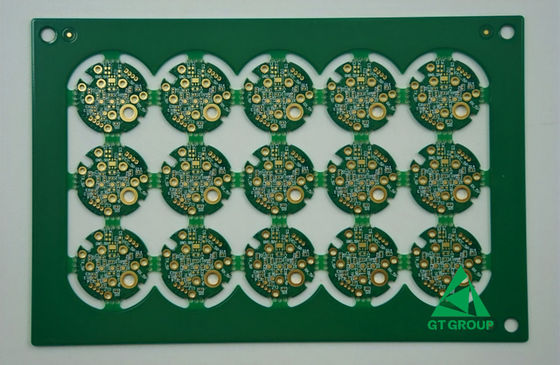

4layer HDI Printed Circuit Board With TG150 laser drilling And EING Resin Plugging

Brand Name:	Customized
MOQ:	1 Panle
Price:	Negotiation per drawing and gerber file
Payment Terms:	Negotiation, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, TS16949, UL

Layer Count:

4Layer

Board Thickness:

FR4 Tg150 0.8mm

Min Hole Size:

015mm

Solder Mask Color:

Green

Technology:

Blind Hole L1-2

Min Trace Width/Space:

4/4mil

Surface Finish:

EING

Packaging Details:

Vacuum package

Highlight:

4layer HDI Printed Circuit Board

hdi printed circuit boards

TG150 laser drilling HDI PCB

Product Description

Product Parameters:

Layer	4 layer
Materail	FR4 Tg150 0.8mm
Surface finish	EING
Technology	Blind hole and laser drilling
Plugging	Resin plugging and plated over
The min hole size	0.15mm
Min line/space width	0.15/ 0.12mm

The HDI PCB Board is available in a wide range of layer counts, from 2 to 14 layers. This makes it a versatile and flexible option that can be tailored to meet the needs of a wide range of projects. The board is also available with a flying probe test, which ensures that the board is functioning correctly before it is shipped to the customer. This helps to eliminate any potential issues and ensures that the board is of the highest quality.

The HDI PCB Board has a minimum trace width and space of 6/5mil and blind holes, which makes it ideal for use in high-speed applications. This ensures that the board can handle fast data transfer rates without any signal loss or interference. The board is also available in a range of solder mask colors, including green, blue, white, black, red, and yellow. This allows customers to choose the color that best suits their needs and preferences.

Overall, the HDI PCB Board is an excellent choice for anyone looking for a reliable and high-quality PCB printed circuit board. Its versatility, durability, and performance make it an attractive option for a wide range of applications. Whether you are working on consumer electronics, medical equipment, or automotive systems, the HDI PCB Board is sure to meet your needs and exceed your expectations.
