18 Layer PCB Winding 3OZ / 5OZ Printed Circuit PCB Board Burid Hole

Brand Name:	Customized
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL,ISO9001

Layer:

18L

Materail:

IT180A High TG

Copper Thickness:

5OZ

Board Thickness:

4.5mm+/-10%

Special:

Burid Hole, Half Hole Plated

Name:

Printed Circuit Board

Packaging Details:

Vaccum package

Highlight:

18 Layer PCB Winding

PCB Winding 3OZ

5OZ Printed Circuit PCB Board

Product Description

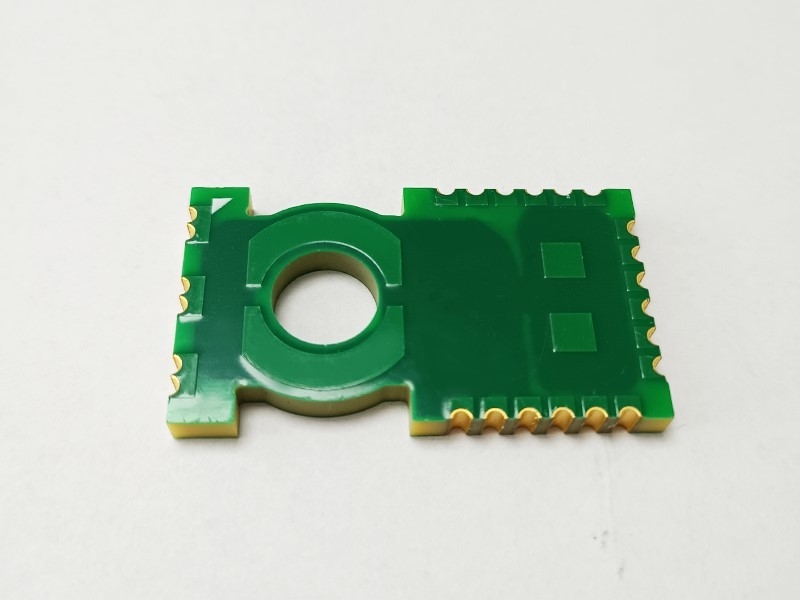

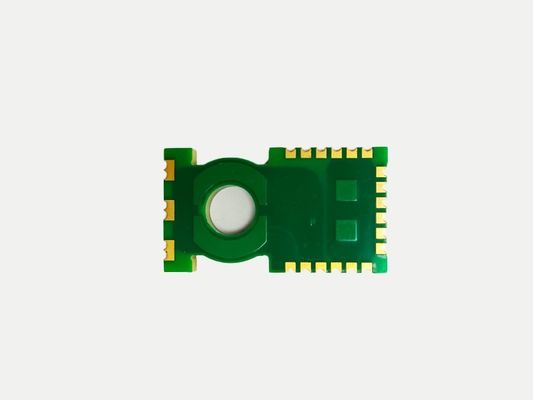

18L/transformr PCB/3OZ/high TG/half hole plated/5OZ/Burid hole

Winding PCB is normally applied to transformer product and adapter. It is widely applied the consumer,communication, automotive industry.

1. They required high technology requriement such as:

1) Material:high TG material: Critical RC% and copper foil choose.
2)Copper thickness: heavy copper 3OZ to 10OZ,
3) Special technology burid holes, depth drilling, PI materail used etc.
4)) Resin plugging+hole plated over,
5)Special soldermask to be taken high voltage.

2. The PCB needs to be tested as following:

1) Resistance test, inductance test, high voltage test and even capacitance test, Q value etc.

2) Reliability test: CAF test, solderability test,thermal shock test, temperature cycling test etc.

How to know the dielectric thickness can be withstand voltage value? Is the same voltage level with different kind materails?

Call me,let us disscuss their details.
