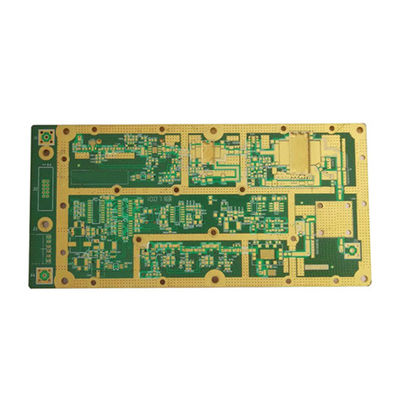

1oz High Frequency PCB HASL LF HASL Rogers Multilayer PCB Board

Basic Information
Base Material: PTFE ROGERS Copper Thickness: 1oz
Board Thickness: 1.6mm Min. Hole Size: 0.25mm
Min. Line Width: 0.1mm Min Line Spacing: 4mil
Surface Finishing: HASL, LF HASL Solder Mask Color: Green/black
Highlight:

1oz High Frequency PCB

,

High Frequency PCB HASL

,

Rogers Multilayer PCB Board

High Frequency Rogers Multilayer PCB Board Manufacturer/PTFE Rogers/HASL, LF HASL/1oz/ISO19001, UL, SGS



The definition of Rogers Multilayer PCB is a PCB made of three or more conductive copper foil layers. They appear as several layers of double-sided circuit boards, laminated and glued together, are smaller and lighter than other single-sided and double-sided printed circuit boards, and have a thermal insulation layer between them. The entire structure is laid out so that two layers are placed on the surface side of the PCB to connect to the environment. All electrical connections between layers are achieved through holes, such as plated through holes, blind holes and buried holes.

Rogers Multilayer PCB Advantages:

Rogers Multilayer PCB Applications:

If you are interested or have any questions, please feel free to contact us.
