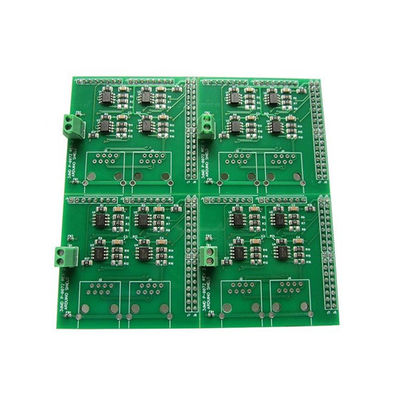

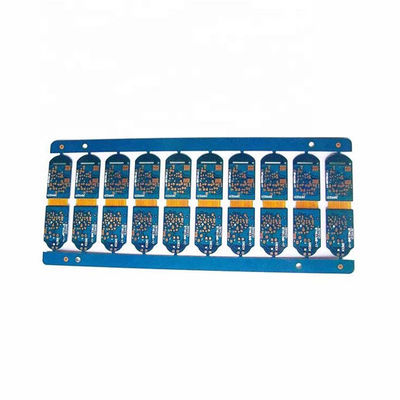

ENIG High Frequency PCB 2 Layer PCB HF 1oz With Rogers 3010 Technology

ENIG High Frequency PCB 2 Layer PCB HF 1oz With Rogers 3010 Technology

ENIG High Frequency PCB 2 Layer PCB HF 1oz With Rogers 3010 Technology

Brand Name: Customized
MOQ: Negotiable
Price: Negotiable
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
UL,ISO9001
Material:
Rogers 3010
Layers:
2 Layers
Board Thickness:
1.2mm
Surface Finishing:
ENIG
Finished Copper Thickness:
1/1 OZ
Special PCB Technology:
Rogers Material
Certification:
ISO19001, UL, SGS
Packaging Details:
Vaccum package
Highlight:

ENIG High Frequency PCB

,

High Frequency PCB 2 Layer

,

PCB HF 1oz

Product Description

High Frequency PCB HF with Rogers 3010 Technology/Rogers 3010/ENIG/2 Layer/1oz





RO3010 high-frequency PCB laminate is a ceramic-filled PTFE composite material designed for commercial microwave and RF applications. Its obvious characteristics are excellent electrical performance and stable and consistent mechanical performance. This allows our designers to develop multilayer boards without experiencing warpage or reliability issues.

High Frequency PCB Features:

  • Excellent mechanical properties versus temperature
  • Uniform mechanical properties
  • Low in-plane expansion coefficient (match to copper)

High Frequency PCB Applications:

  • Automotive radar
  • GPS Antennas
  • Power amplifiers and antennas
  • Patch antennas for wireless communications
  • Direct broadcast satellite

If you are interested or have any questions, please feel free to contact us.
