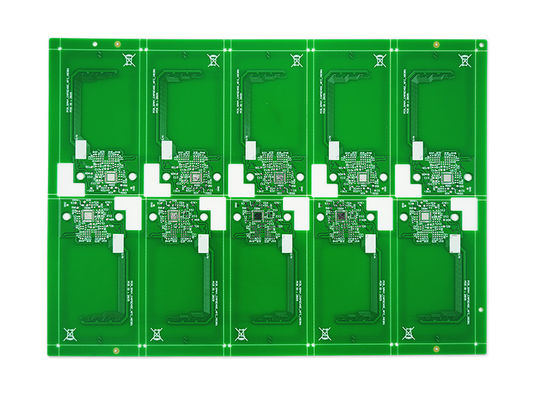

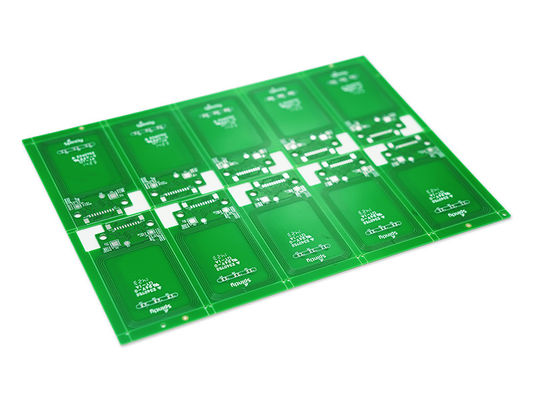

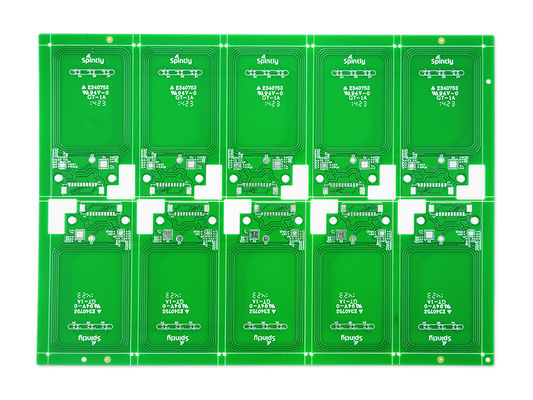

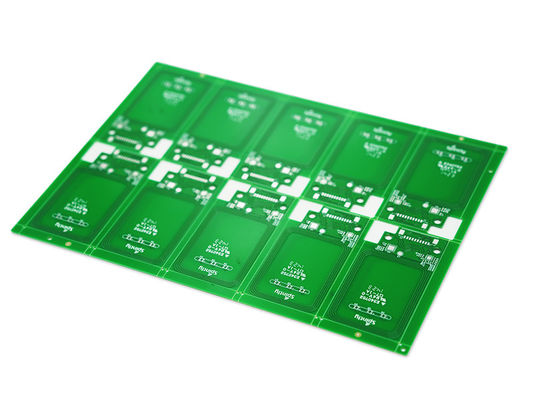

| Layer Count:: | 2L | Copper Thickness:: | 1/1 OZ |
|---|---|---|---|
| Boards Thickness:: | 1.0MM+/-10% | Min Hole Size:: | 0.2MM |
| Material:: | KB6160A | Surface Treatment:: | HAL LEAD FREE |
| Profile:: | 197*142mm | ||
| Highlight: | 2L Quick Turn PCB,Quick Turn PCB Boards,KB6160A |
||
2L_0.2mm_HAL_LEAD_FREE KB6160A 1/1 OZ 1.0MM+/-10% 197*142mm
Rigid PCBs are composed of multiple layers of conductive materials and dielectric layers, which are bonded together and then etched with conductive pathways. This allows for the connection of various components, such as resistors and capacitors, to be connected in order to create a functioning circuit. The China rigid PCB boards can then be populated with components to create the desired product. The rigid PCBs are then encased in a protective coating to protect them from the elements.
| Layer count: | 2 |
| Copper thickness: | 1/1 OZ |
| Board thickness: | 1.0MM+/-10% |
| Min hole size: | 0.2MM |
| Aspect ratio: | 5:1 |
| Board edge plating: | NO |
| Material: | KB6160A |
| Surface treatment: | HAL LEAD FREE |
| Profile: | 197*142mm |
