| Name:: | Printed Circuit Board | Layer Count:: | 2L |
|---|---|---|---|
| Copper Thickness:: | 3/3 OZ | Board Thickness:: | 0.8MM+/-0.1MM |
| Min Hole Size:: | 0.63MM | OEM:: | Custom |
| Highlight: | ENIG Quick Turn Circuit Board,Rigid Quick Turn Circuit Board,2L Custom PCB Board |
||

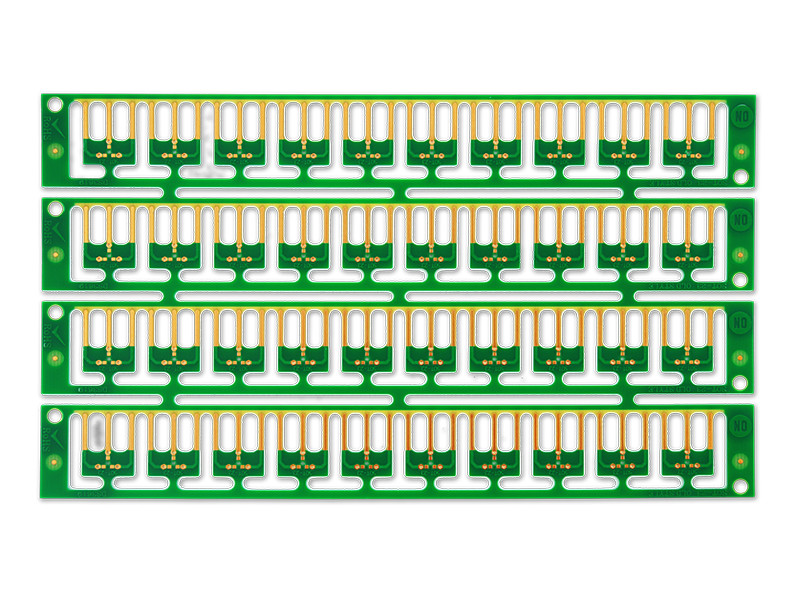

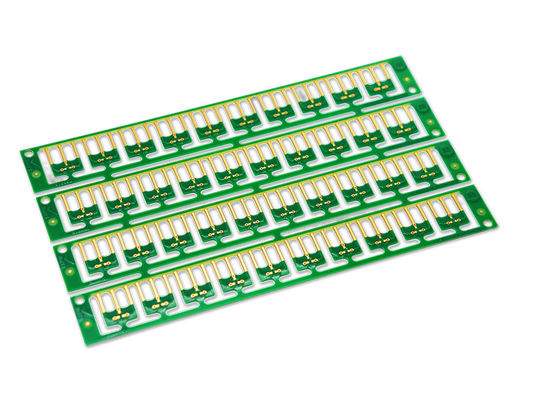

2L RIgid PCB_0.63mm_S1000-2 ENIG 3/3 OZ 0.8MM+/-0.1MM 168.25*94.49MM
Rigid PCB boards are made from layers of insulating material, such as fiberglass, and copper foil. The copper foil is etched to create the desired circuit pattern, and then the layers are bonded together and laminated with a protective coating. Rigid PCBs are designed to be highly reliable and durable, withstanding the rigors of extended use and providing consistent performance over time.
| Layer count: | 2 |
| Copper thickness: | 3/3 OZ |
| Board thickness: | 0.8MM+/-0.1MM |
| Min hole size: | 0.63MM |
| Aspect ratio: | 1.27:1 |
| Board edge plating: | NO |
| Material: | S1000-2 |
| Surface treatment: | ENIG |
| Profile: | 168.25*94.49MM |
