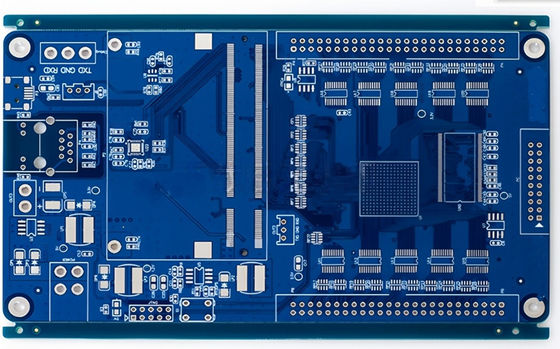

Blue Solder Mask High Frequency PCB in 1.6mm Thickness for High Frequency Needs

Brand Name:	Customized
MOQ:	1 Panle
Price:	Negotiation
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, TS16949,ISO13485

Board Layer:

6 Layer

Thickness:

1.6 Mm

Pcb Materail:

FR4 TG170

Finish:

Immersion Tin

Solder Mask:

BLUE

Copper Thicknes:

1/1/1/1/1/1oz

Special Technology:

BGA, Impendance Control

Packaging Details:

Vacuum package

Highlight:

1.6mm Thickness High Frequency PCB

High Frequency Needs High Frequency PCB

Blue Solder Mask High Frequency PCB

Product Description

Product Description:

High Frequency PCB boards are specialized printed circuit boards designed for applications that require high-speed signal transmission and high-frequency performance. These PCBs are built to exacting standards to ensure optimal signal integrity and minimal signal loss.

The High Frequency PCB board has a thickness of 1.6mm, which provides stability and durability for the intricate circuitry and components it supports. This thickness also helps in maintaining signal integrity and reducing electromagnetic interference.

For enhanced aesthetics and protection, the High Frequency PCB features blue solder mask. The solder mask not only provides a sleek finish but also helps in preventing short circuits and ensuring proper soldering of components onto the PCB.

The High Frequency PCB board is a six layer board, offering versatility in designing complex circuits while maintaining signal integrity. The six layers allow for efficient routing of signals and power, contributing to the overall performance of the PCB.

High Frequency PCB boards are commonly used in industries such as telecommunications, aerospace, medical devices, and high-speed computing where signal accuracy and reliability are critical. The High Frequency PCB excels in high-frequency applications, ensuring minimal signal loss and maintaining signal integrity over long distances.

In conclusion, the High Frequency PCB is a cutting-edge solution for demanding applications that require high-frequency performance and signal integrity.

Technical Parameters:

Layer	6 layer
Material	FR4 Tg170 1.6mm
Line width/space	4/4mil
Copper Thk	1/1/1/1/1/1OZ
Testing Method	Flying Probe Test, E-test
Solder Mask	Blue
Pcb Standard	IPC-A-610 E class 2
Technology	BGA, Impendance control
Usage	OEM Electronics
Surface Finish	Immersion Tin
