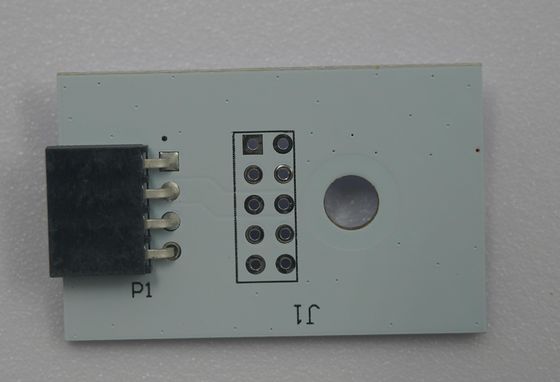

Printed Circuit Board Assembly 1 Layer 1OZ Copper Thickness LF HAL And White Soldermask
  • Printed Circuit Board Assembly 1 Layer 1OZ Copper Thickness LF HAL And White Soldermask
  • Printed Circuit Board Assembly 1 Layer 1OZ Copper Thickness LF HAL And White Soldermask

Printed Circuit Board Assembly 1 Layer 1OZ Copper Thickness LF HAL And White Soldermask

Place of Origin China
Brand Name Customisation
Certification ISO9001
Product Details
Product Name:
Printed Circuit Board Assembly,PCB Assembly
Base Material:
FR4 Normal TG 1.6mm
Copper Thickness:
1/1OZ
Surface Finish:
Lead Free HASL
Soldermask:
White
Service:
One-stop Turnkey Service, PCB Assembly, PCB/Components Sourcing/Soldering/Progamming/Testing..
Highlight:

1 Layer Printed Circuit Board Assembly

,

White Soldermask Printed Circuit Board Assembly

,

1OZ Copper PCB Assembly

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiation
Packaging Details
ESD plastic Packing
Payment Terms
T/T,Negotiation
Product Description

Product description:



Product name Printed circuit Assembly
Layer 2 layer
Copper thickness 1/1 OZ
Soldermask/Silkscreen  White/Black
Surface finish LF HAL
Service One-stop Turnkey Service,PCB assembly,



Assembly Technologies:

Printed circuit board assembly is a crucial step in the PCB manufacturing process of electronic devices. Here are some technologies involved in PCB assembly:

Surface Mount Technology (SMT): Components are mounted directly onto the surface of the PCB. This technology allows for smaller components and denser PCB layouts.



Through-Hole Technology (THT): Components with wire leads are inserted into holes in the PCB and soldered on the opposite side. THT is used for components requiring mechanical strength or heat dissipation.



Automated Optical Inspection (AOI): AOI systems use cameras and image processing algorithms to inspect solder joints and components for defects such as misalignment, missing components, or solder bridges.



X-Ray Inspection: X-ray machines are used to inspect hidden solder joints, check for voids in solder, and ensure the integrity of components like ball grid arrays (BGAs).



In-Circuit Testing (ICT): ICT involves testing the electrical connections on the PCB using test probes. This method is used to detect faults like open circuits, shorts, and incorrect components.



Flying Probe Testing: Instead of using dedicated test fixtures, flying probe testers have moving test probes that can adapt to various PCB designs, making them suitable for low-volume production.



Functional Testing: This involves testing the PCB while it is operational to ensure that it functions according to the design specifications. These processes and technologies collectively ensure the quality and reliability of PCB assemblies in electronic devices.
