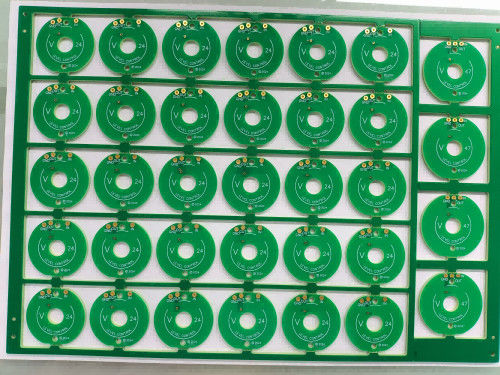

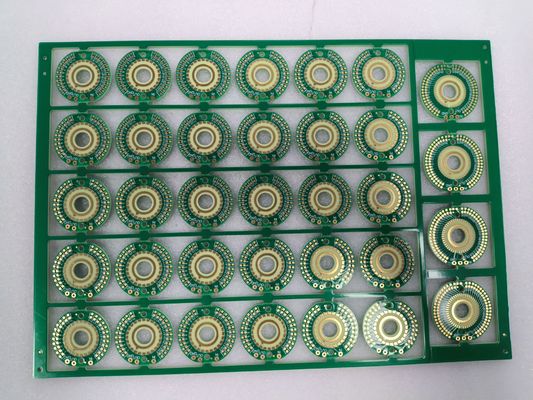

2 Layer FR4 PCB High TG Circuit Board 2.4mm With Hard Gold For Rotary Switches

Brand Name:	Customized
Model Number:	PCB
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1m2 Per 6 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL,ISO9001

Layer:

2.36mm

Materail:

Shengyi S1000-2M

Copper Thickness:

2/2oz

Surfacr Treatment:

EING+ HARD GOLD 50U''

Highlight:

Hard Gold PCB, Pcb Fabrication,double Sided Pcb Board

Packaging Details:

Vaccum package

Highlight:

rotary switches 2 layer FR4 PCB

high TG 2 layer FR4 PCB

hard gold 2 layer FR4 PCB

Product Description

Hard gold PCBs are commonly used in applications that require high reliability, such as aerospace, military, and medical devices. These industries often involve frequent mating and unmating of connectors, which can cause wear and tear on the PCB contacts. The hard gold finish ensures that the PCB can withstand these repeated cycles without degradation.

It's important to note that hard gold plating is costlier compared to other surface finishes, such as HASL (Hot Air Solder Leveling) or ENIG (Electroless Nickel Immersion Gold). The choice of surface finish depends on factors such as the specific requirements of the PCB design, the intended application, and cost considerations.

ITEM	Data
Layer	2 layer
Copper thickness	2/2OZ
Materail	Shengyi S1000-2M(TG170)
Board thickness	2.36mm
Surface finish	Immersion gold
Special technology	Hard gold 50U''
