| Board Type: | Rigid | Layers: | 8L |
|---|---|---|---|
| Material: | KB6160A | Board Thickness: | 1.6mm+/-10% |
| Finished Copper: | 1/1/1/1/1/1/1/1 OZ | Soldermask: | Green |
| Silkscreen: | White | ||
| Highlight: | ENIG Rigid PCB,8 Layer Rigid PCB,8 Layer PCB Silkscreen |
||

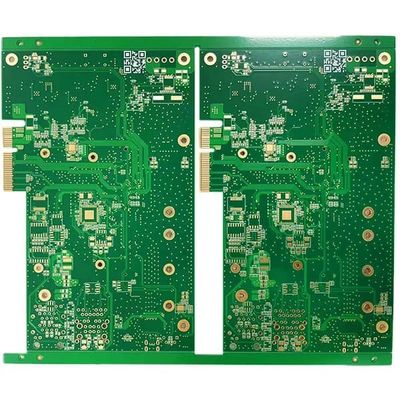

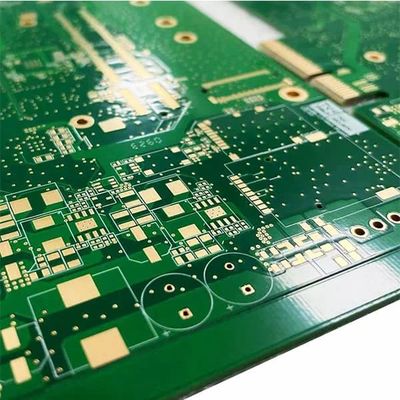

8 layer Rigid KB6160A green 1.6mm+/-10% ENIG white
When designing a rigid PCB, it is important to consider the board's size, thickness, and other factors. It is also important to consider the components that will be mounted on the board, as the design must accommodate them.
| Board Type | Rigid |
| Layer | 8 |
| Material | KB6160A |
| Board thickness | 1.6mm+/-10% |
| Finished copper | 1/1/1/1/1/1/1/1 OZ |
| Surface Treatment | ENIG |
| Soldermask | green |
| Silkscreen | white |
