FR4 Multilayer PCB Manufacturing For Car Aromatherapy Machine With LED Indicator Type C Interface
  • FR4 Multilayer PCB Manufacturing For Car Aromatherapy Machine With LED Indicator Type C Interface
  • FR4 Multilayer PCB Manufacturing For Car Aromatherapy Machine With LED Indicator Type C Interface
  • FR4 Multilayer PCB Manufacturing For Car Aromatherapy Machine With LED Indicator Type C Interface

FR4 Multilayer PCB Manufacturing For Car Aromatherapy Machine With LED Indicator Type C Interface

Place of Origin China
Brand Name GT
Certification UL, ISO90001
Model Number PCBA fabrication
Product Details
Product Type:
Rigid PCB
Materail:
FR4
Copper:
1OZ
Surface Treatment:
Lead Free HASL
Soldermask:
Green
Highlight:

Car Aromatherapy Machine FR4 multilayer PCB

,

Type C Interface FR4 multilayer PCB

,

LED Indicator FR4 multilayer PCB

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiation
Packaging Details
Vaccum package
Delivery Time
1-2 weeks
Payment Terms
T/T
Supply Ability
1m2 per 1-2 weeks
Product Description

PCBA For Car Aromatherapy Machine With LED Indicator, Type-C Interface Supports Memory Function



Description Capability
PCB size 48.7*39*1.2mm
Air pump motor rated voltage 5V
Indicator light White light *5, blue light *1
Touch keys 2
Connector Type-C

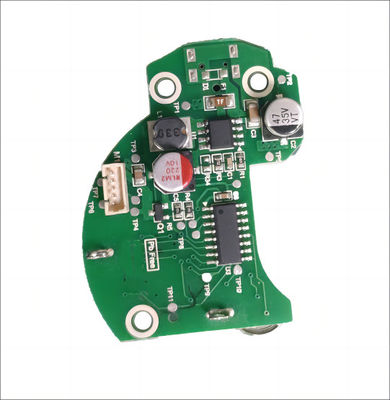

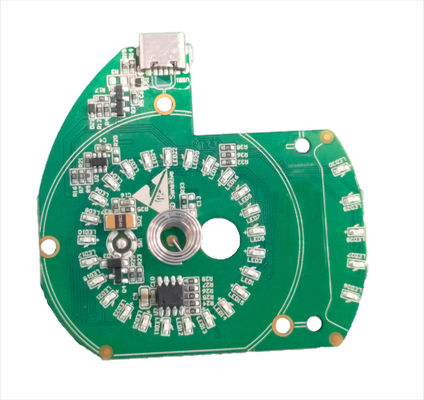

This PCBA is a motherboard designed for in-car aromatherapy machines to control and manage the various functions of the aromatherapy machine.



The PCBA uses white 5P terminals to connect to the motherboard for connection and communication with other components and sensors. These terminals are used to transmit data and control signals for integration with other systems.

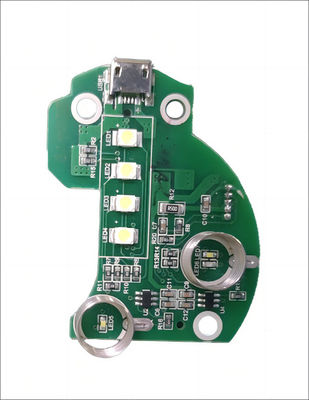

The main circuits pcb board is equipped with 5 white indicators and 1 blue indicator to show different working states and indicator effects. These indicators provide the user with visual feedback on the operating status of the aromatherapy machine.



In addition, the motherboard pcb also includes 2 touch buttons for the user to interact with and control the aromatherapy machine. These touch buttons can be used to start/stop the aromatherapy machine, adjust the intensity of the aromatherapy or switch different working modes.



The electronic pcba  is powered using a Type-C interface with high-speed data transfer and fast charging capabilities to provide stable power support.

The PCBA of the motherboard incorporates built-in safeguards such as overvoltage protection and overcurrent protection, ensuring the safe operation of the circuitry and equipment. These protective features actively monitor and prevent instances of overvoltage and overcurrent, safeguarding the motherboard PCB and its associated components from potential damage.



Finally, the motherboard pcba has a memory function that can save and remember the user's previous Settings and preferences. This means that the aromatherapy machine can be restored to the last used Settings after restarting, providing a more convenient and personalized experience.

All in all, the PCBA, as the motherboard of the vehicle aromatherapy machine, has the characteristics of connection interface, indicator light, touch button, overvoltage protection, overcurrent protection and memory function to achieve stable, safe and convenient operation and control of the aromatherapy machine.
