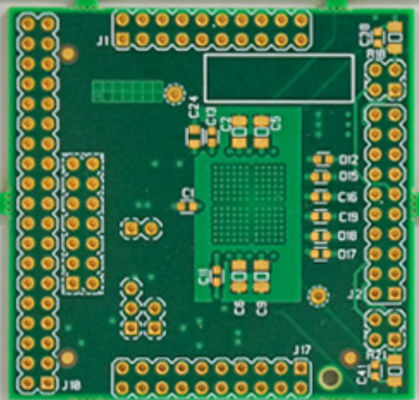

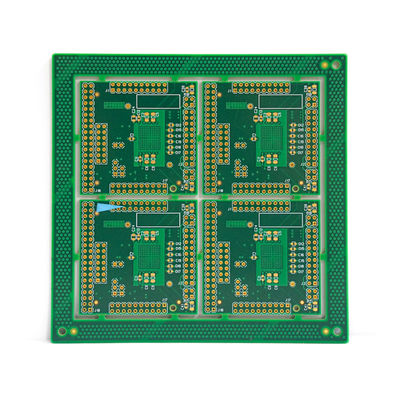

8 Layer PCB 2oz With FR4 TG170 Circuits PCB Impendance Control For Industry Control
  • 8 Layer PCB 2oz With FR4 TG170 Circuits PCB Impendance Control For Industry Control
  • 8 Layer PCB 2oz With FR4 TG170 Circuits PCB Impendance Control For Industry Control

8 Layer PCB 2oz With FR4 TG170 Circuits PCB Impendance Control For Industry Control

Place of Origin China
Brand Name Customized
Certification UL,ISO90001
Model Number Industrial pcb
Product Details
PCB Layer:
8 Layer
Copper Thickness:
2/2/2/2/2/2/2/2OZ
Base Material:
FR4 TG170
Solder Mask:
Green
Surfact Treatment:
Immersion Gold
Technology:
Impendance Control
Standard:
IPC Class 3
Usage:
Indurstry Control
High Light:
Pcb Manufacturing,pcb Prototype Service,2oz Copper Pcb
Highlight:

2oz 8 layer pcb

,

8 layer pcb For Industry Control

,

FR4 TG170 8 layer pcb

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiation
Packaging Details
MBB
Delivery Time
8-12 DAYS
Payment Terms
T/T
Supply Ability
1m2 per 10 days
Product Description

PCB Design and Manufacturing: The PCB layout is using specialized software, taking into account the specific requirements of the blender's control system. The design includes component placement, trace routing, and signal integrity considerations.

Gerber Files: Gerber files are the industry-standard file format used to communicate PCB design information to PCB manufacturers. These files contain detailed instructions for manufacturing the PCB, including copper layers, solder mask, component placement, and drill hole locations. The PCB designer exports the Gerber files from the PCB design software and provides them to the PCB manufacturer.

PCB prototype service: All pcb circuit board projects can be supported prototype service before mass production.
