Flexible PCB Board
>
|
| Place of Origin | China |
| Brand Name | Customized |
| Certification | UL,ISO9001 |

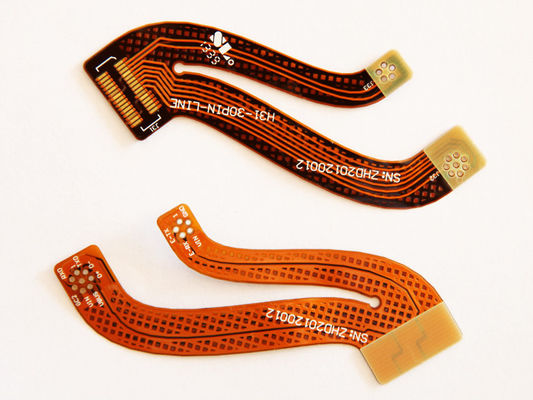

Flexible PCB Boards, also known as Flexible Printed Circuit Board (FPCB), are a type of printed circuit board that are highly flexible and bendable, making them ideal for a wide variety of applications. They are composed of a thin copper foil laminated on a flexible substrate such as polyimide or polyester. With their unique properties, Flexible PCB Boards are able to meet the requirements of various industries, from medical to automotive and consumer electronics.
Flexible PCB Boards are available in a variety of board types, copper thickness, min. line spacing, and layer counts. The board types available for Flexible PCB Boards include FR-4, FR-4/Halogen-free, Polyimide, and Polyester. Copper thickness can range from 1-3oz, while the min. line spacing is typically 0.1mm. Available layer counts range from 1-20. Lastly, Flexible PCB Boards come in a variety of solder mask colors, such as green, blue, white, etc.
Flexible PCB Boards offer a multitude of advantages over other types of PCBs, including high flexibility, superior electrical performance, and improved durability. With their enhanced capabilities, Flexible PCB Boards are becoming increasingly popular in a wide variety of applications.
| Product Property | Description |
|---|---|
| Board Thickness | 0.2-3.2mm |
| Surface Finish | HASL, ENIG, OSP, Etc. |
| Solder Mask Color | Green, Blue, White, Etc. |
| Application | Industrial, Automotive, Etc. |
| Min. Hole Size | 0.2mm |
| Material | Flexible |
| Warranty | 1 Year |
| Silkscreen Color | White, Black, Yellow, Etc. |
| Min. Line Spacing | 0.1mm |
| Board Type | PCB |
Flexible PCB Board, also known as Flexible Printed Circuit Board, is a board with flexible substrates, which is widely used in many different application scenarios. It features multiple Solder Mask Colors (Green, Blue, White, etc.), multiple Surface Finishes (HASL, ENIG, OSP, etc.), a Min. Hole Size of 0.2mm, Board Thickness ranging from 0.2-3.2mm and multiple Silkscreen Colors (White, Black, Yellow, etc.).
Flexible PCB Board is the ideal choice for applications that require a high degree of flexibility and reliability, such as in wearable devices, medical devices, consumer electronics, industrial controls, automotive electronics, and other applications. It is also widely used in the aerospace and defense industry, as it can withstand extreme temperatures, vibrations, and other environmental conditions.
Flexible PCB Board is also highly customizable, making it the perfect choice for applications that require a tailored solution. With its high degree of flexibility and reliability, combined with its low cost and ease of use, it is the perfect choice for any application where a high degree of performance is required.
Customize your Flexible PCB Board with our design and manufacturing services! We offer a wide range of Flexible PCB Boards with a Min. Line Spacing of 0.1mm, Copper Thickness of 1-3oz, Board Thickness of 0.2-3.2mm and a 1 Year Warranty. Our Flexible Circuit Board services ensure you have the right PCB for your project!
A Flexible PCB Board is a type of printed circuit board with a flexible base material, typically a thin, flexible plastic material. It provides increased design flexibility in tight spaces and can be quickly and easily adapted to changing product designs.
Flexible PCB Boards offer a range of advantages compared to traditional rigid printed circuit boards, including: improved space utilization, better mechanical strength, improved electrical performance, reduced costs, and faster time-to-market.
Flexible PCB Boards come in a variety of types, including single-layer, double-layer, and multi-layer. They can also be produced with a range of different materials, including polyimide, polyester, and polyethylene.
Flexible PCB Boards are used in a wide range of applications, including telecommunications, industrial automation, medical equipment, military equipment, consumer electronics, and automotive electronics.
Flexible PCB Boards should be handled with care to avoid damage. They should be stored in a dry, dust-free environment and handled using static-free gloves to prevent static electricity from damaging the board.
