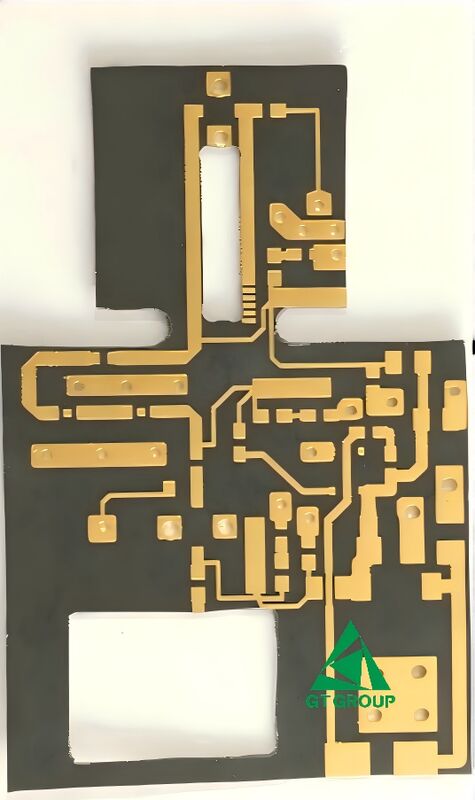

1OZ Copper Thickness Rogers PCB for Microwave and RF Circuit Designs

Product Description:

The Rogers PCB product is a high-performance Hybrid Stack Up Board designed to meet the rigorous demands of advanced electronic applications. Specifically engineered to provide exceptional electrical properties and mechanical stability, this board is an ideal choice for industries that require superior signal integrity and minimal loss at high frequencies. With a versatile layer configuration ranging from 4 to 8 layers, this product offers flexibility in design to accommodate complex circuit requirements while maintaining reliable performance.

One of the standout features of the Rogers PCB is its 4-layer construction, which provides an optimal balance between signal routing capabilities and compactness. This multi-layer design supports intricate circuitry and enables enhanced electromagnetic compatibility, making it particularly suitable for RF and microwave applications. The inclusion of 1oz copper thickness further strengthens the board's ability to handle high current densities and improve thermal management, ensuring durability and long-term reliability in demanding environments.

Another critical attribute of this Rogers PCB product is its dielectric constant, which ranges from 2.2 to 10.2. This wide range of dielectric constants allows engineers to select the most appropriate material properties to optimize signal speed, reduce signal loss, and minimize electromagnetic interference. The low dielectric loss characteristic inherent in the Rogers materials is essential for maintaining signal integrity in high-frequency circuits, making this board an excellent choice for Rogers Microwave PCB Board applications.

As a Rogers High Frequency PCB, this product leverages advanced material science to deliver outstanding performance in microwave, RF, and high-speed digital circuits. The hybrid stack-up structure combines different materials to achieve the best electrical and mechanical properties, ensuring consistent impedance control and reducing signal distortion. This makes the Rogers RF Circuit Board highly suitable for telecommunications, aerospace, defense, and other sectors where precision and reliability are paramount.

The Rogers PCB also excels in thermal management due to its robust copper thickness and carefully engineered stack-up design. The 1oz copper layers enhance heat dissipation, helping to maintain stable operating temperatures even under high power conditions. This characteristic is vital for applications involving high-frequency switching and power amplification, where thermal stability directly impacts performance and longevity.

Furthermore, the flexibility in layer count—from 4 to 8 layers—enables designers to tailor the board to specific application needs. Whether implementing simple signal routing or complex multi-layer interconnections, the Rogers PCB offers the adaptability required for modern electronic devices. This scalability makes it a preferred choice for prototype development as well as full-scale production runs.

In summary, the Rogers PCB product is a superior Hybrid Stack Up Board designed with 4 layers, 1oz copper thickness, and a dielectric constant range of 2.2 to 10.2. Its versatile layer options from 4 to 8 layers and advanced material properties make it an excellent solution for high-frequency and microwave circuit applications. Incorporating this Rogers Microwave PCB Board into your design ensures enhanced signal integrity, thermal performance, and mechanical reliability, meeting the stringent requirements of today’s high-tech industries. Whether used as a Rogers High Frequency PCB or a Rogers RF Circuit Board, this product delivers the quality and performance needed to excel in demanding electronic environments.

Technical Parameters:
