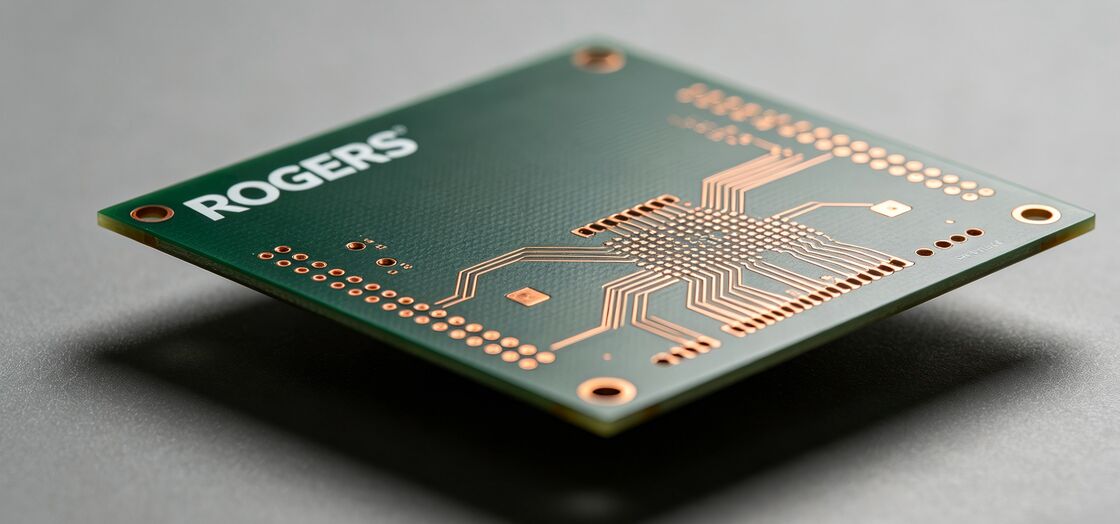

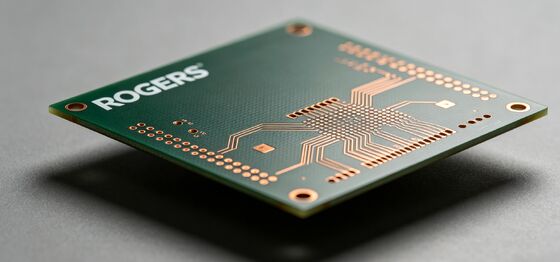

Rogers Printed Circuit Board Pcb with EING Developed for Telecommunications

MOQ:	1 panel
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Productname:

Rogers PCB

Materail:

Rogers 4003

Layers:

2 Layer

Copper Thk:

1OZ

Surface Finishing:

ENIG

Dielectricconstant:

2.2 To 10.2

Soldermask:

Green

Packaging Details:

Vacuum package

Product Description

Technical Parameters:

Product Name	Rogers PCB
Type	Hybrid Stack Up Board
Layer Number	2 Layer
Copper Thickness	1 OZ
Cu Thickness	35 UM
Thermal Conductivity	0.6 To 0.9 W/mK
Dielectric Constant	2.2 To 10.2
Surface Finishing	ENIG
SMT Efficiency	BGA, QFP, SOP, QFN, PLCC, CHIP
Multilayer Stack Up	Stack Up, Control Impedance

Applications:

Rogers high-frequency circuit boards are widely used in fields that require excellent signal integrity, low dielectric loss and stable electrical performance.

They are ideal for 5G base stations, automotive radar, satellite communications, aerospace systems, high-speed data links, RF power amplifiers, microwave radio equipment, and IoT wireless modules.

With superior thermal management, low Dk/Df values and consistent electrical properties, Rogers PCBs ensure reliable transmission of high-frequency signals, minimize signal attenuation, and operate stably in extreme temperature and high-speed environments.

They have become the core material choice for high-performance communication, automotive electronics, medical electronic equipment.

Support and Services:

Rogers PCB products are supported by a comprehensive technical support and service team dedicated to ensuring optimal performance and customer satisfaction. Our experts provide assistance with material selection, design guidelines, and process optimization to help you achieve the best results in your applications.

We offer detailed product documentation, including datasheets, application notes, and reference designs to aid in your development process. Our technical support team is available to address any questions or challenges you may encounter, providing prompt and knowledgeable responses.

In addition to support, Rogers provides value-added services such as custom material solutions, prototyping assistance, and reliability testing to meet your specific project requirements. We are committed to partnering with you to deliver innovative solutions and exceptional service throughout the lifecycle of your PCB product.
