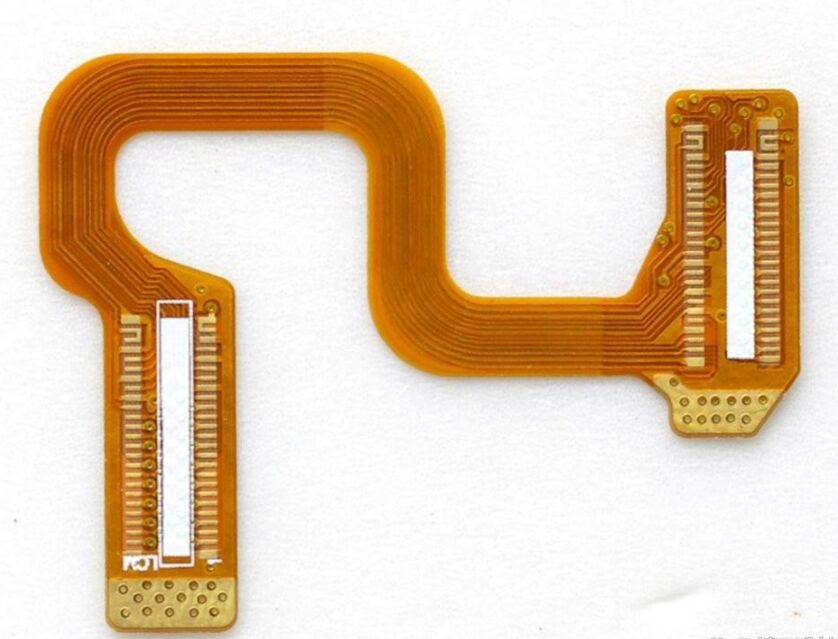

Electronics Device Flexible Circuit Board Featuring Minimum Trace Spacing 0.1mm

Product Description:

The Flexible PCB Board is a highly versatile and essential component in modern electronics, designed to meet the increasing demand for compact, lightweight, and reliable electronic devices. As a type of Electronics Device, this product exemplifies advanced manufacturing techniques and superior material quality to deliver exceptional performance in various applications. Known also as Flexible Printed Board, Flexible Printed Circuit Boards, or Flexible Circuit Boards, these products are indispensable in industries ranging from consumer electronics to automotive, medical devices, and aerospace.

One of the standout features of this Flexible PCB Board is its surface finish, which utilizes EING technology. The EING (Electroless Nickel Immersion Gold) surface finish provides excellent corrosion resistance and ensures reliable solderability, making the board highly durable and capable of maintaining consistent electrical performance over time. This finish also protects the conductive pathways from oxidation and wear, which is critical for maintaining signal integrity in complex circuits.

The solder mask options available for the Flexible Printed Circuit Boards are diverse, catering to different aesthetic and functional requirements. Customers can choose as Yellow Coverlay solder masks. This variety not only enhances the visual appeal of the boards but also provides effective insulation and protection against environmental factors such as moisture, dust, and contaminants. The yellow coverlay, in particular, is a specialized protective film that adds an additional layer of durability and flexibility, ideal for circuits subjected to frequent bending or twisting.

Another important characteristic of this Flexible Printed Board is the use of white silkscreen printing. The white silkscreen provides clear and sharp markings on the board, aiding in component placement, identification, and troubleshooting during assembly and maintenance. The contrast offered by the white silkscreen against the various solder mask colors improves visibility and helps reduce errors during manufacturing and repair processes.

Flexible Circuit Boards offer remarkable advantages over traditional rigid PCBs, including enhanced mechanical flexibility, reduced weight, and the ability to conform to unusual shapes and tight spaces. This flexibility allows designers to innovate and optimize the design of electronic devices, improving both performance and user experience. Whether used in wearable technology, smartphones, medical instruments, or automotive sensor systems, these Flexible Printed Circuit Boards deliver reliable electrical connections while adapting to dynamic mechanical stresses.

Ultimately, the Flexible PCB Board represents a fusion of cutting-edge technology, meticulous craftsmanship, and versatile design options. Its EING surface finish, multiple solder mask colors including the protective yellow coverlay, ultra-fine mini holes, and clear white silkscreen printing make it an ideal choice for developers and manufacturers seeking high-quality Flexible Printed Boards. By integrating these Flexible Circuit Boards into their products, companies can achieve superior electronic functionality, longer lifespan, and innovative form factors that meet the evolving demands of today’s technology landscape.

Technical Parameters:
