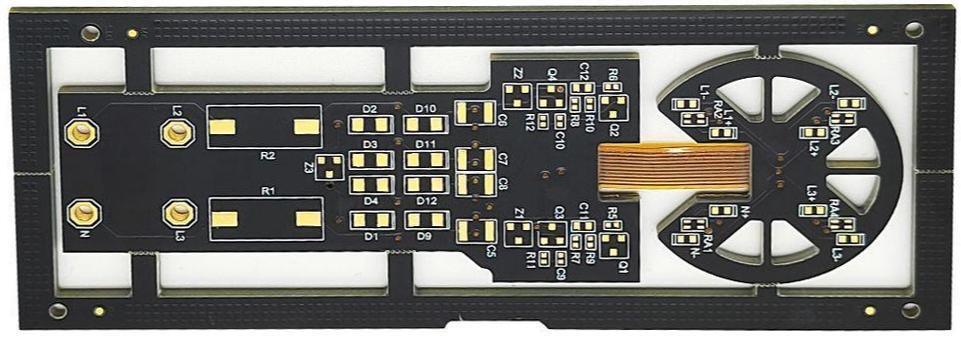

Rigid-Flexible Printed Circuit Board With Immersion Gold Surface Finish

Product Description:

The Flexible Rigid Printed Wiring Board, commonly known as the Rigid Flex PCB, is an advanced and versatile solution designed to meet the demanding requirements of modern electronic applications. Combining the benefits of both rigid and flexible circuit technologies, this product offers exceptional performance, durability, and design flexibility for a wide range of industries including aerospace, medical devices, consumer electronics, and automotive systems.

One of the standout features of our Rigid-Flexible Printed Wiring Board is its optimized bend radius, which ranges from 0.5mm to 10mm. This capability allows the board to bend and flex without compromising its electrical integrity, making it ideal for compact and complex assemblies where space-saving and mechanical flexibility are critical. The ability to handle tight bend radii ensures reliable performance even in tightly confined or dynamically moving environments.

The Flex-Rigid Printed Circuit Board is available with a PCB thickness of 1.6 mm, striking the perfect balance between mechanical strength and flexibility. This thickness provides robust support to the rigid sections of the board while allowing the flexible sections to bend easily without damage. This makes it an excellent choice for applications requiring both structural stability and flexibility, such as foldable electronics and wearable devices.

To enhance reliability and protect the circuitry from environmental factors, our Rigid Flex PCB comes with a high-quality immersion gold surface finish. Immersion gold offers excellent solderability and corrosion resistance, ensuring long-lasting performance and maintaining the integrity of electrical connections over time. This surface finish is particularly beneficial for high-frequency and high-reliability applications, where superior conductivity and durability are essential.

Customization is a key advantage of our Flexible Rigid Printed Wiring Board. Customers can choose from a variety of solder mask colors including green, red, blue, black, white, and yellow. This wide range of color options not only enhances the aesthetic appeal of the PCB but also aids in identifying different circuit sections or layers during assembly and inspection processes, improving manufacturing efficiency and quality control.

Our Rigid-Flexible Printed Wiring Board supports multi-layer configurations ranging from 6 to 12 layers. This flexibility in the number of layers enables complex circuit designs that require multiple signal routing paths, power planes, and ground planes. Multi-layer construction is essential for advanced electronic devices that demand high-density interconnections and superior electrical performance. The layering capability also allows for improved electromagnetic interference (EMI) shielding and signal integrity, which are critical in high-speed and sensitive electronic circuits.

In summary, the Flex-Rigid Printed Circuit Board offers a unique combination of flexibility, strength, and advanced electrical properties. Its controlled bend radius, precise PCB thickness, premium immersion gold surface finish, customizable solder mask colors, and multi-layer options make it an ideal choice for electronics manufacturers seeking innovative and reliable circuit solutions. Whether you are developing compact medical instruments, sophisticated aerospace controls, or next-generation consumer gadgets, our Flexible Rigid Printed Wiring Board provides the performance and adaptability needed to bring your designs to life.

Technical Parameters:

Applications:

The Customized brand offers high-quality Flex-Rigid Printed Circuit Boards originating from China, designed to meet the stringent demands of modern electronic applications. Certified with ISO90001, UL, ROHS, and REACH standards, these Flexible Rigid PCBs ensure reliability and environmental compliance, making them an ideal choice for industries where performance and safety are paramount.

Rigid-Flexible Printed Wiring Boards are widely used across various application occasions and scenarios due to their unique combination of rigidity and flexibility. Their ability to bend and fold without compromising electrical performance makes them indispensable in compact and complex electronic devices. For instance, they are extensively utilized in consumer electronics such as smartphones, tablets, and wearable devices, where space-saving and durability are critical.

In the automotive industry, Flexible Rigid PCBs play a crucial role in advanced driver-assistance systems (ADAS), infotainment units, and engine control modules.

Medical devices also benefit significantly from Flex-Rigid Printed Circuit Boards. Devices like portable diagnostic instruments, implantable medical devices, and monitoring equipment rely on the compactness and flexibility offered by these PCBs. The chemical gold finished treatment enhances corrosion resistance and signal integrity, which are vital in sensitive medical applications.

Customized Flexible Rigid PCB products are available with a minimum order quantity of just 1 piece, facilitating prototyping and small-batch production. Pricing is negotiable, and the delivery time is flexible to accommodate various project timelines. Each board undergoes 100% testing to guarantee quality and performance. Packaging is done using a vacuum package to protect the PCBs from moisture and contamination during transit.

Overall, the versatile application of Flex-Rigid Printed Circuit Boards spans consumer electronics, automotive, medical, aerospace, and military sectors, where innovation, reliability, and miniaturization are essential. The Customized brand’s commitment to quality and customization makes these PCBs a preferred solution for advanced electronic design challenges.

Support and Services:

Our Rigid Flex PCB products are designed to meet high-performance standards and offer reliable solutions for complex electronic applications. We provide comprehensive technical support to ensure seamless integration and optimal functionality of our rigid flex circuits.

Technical support includes guidance on design considerations, material selection, and manufacturing processes to help you achieve the best results. Our team of experts is available to assist with design for manufacturability (DFM) reviews, prototype development, and troubleshooting any issues that may arise during production or assembly.

We also offer detailed documentation and datasheets for our rigid flex PCBs, covering specifications, thermal management, bend radius guidelines, and electrical characteristics. This information is essential for engineers and designers to effectively incorporate rigid flex PCBs into their products.

In addition to technical support, we provide a range of services such as custom fabrication, quick-turn prototyping, and volume production to meet your project timelines and volume requirements. Our quality assurance processes ensure that every rigid flex PCB meets stringent industry standards for reliability and performance.

For ongoing support, we recommend regular communication with our technical team during the design and production phases to address any questions or modifications promptly. Our goal is to deliver high-quality rigid flex PCB solutions that enhance your product’s durability, flexibility, and overall performance.
