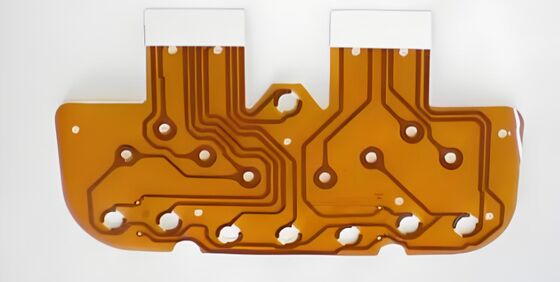

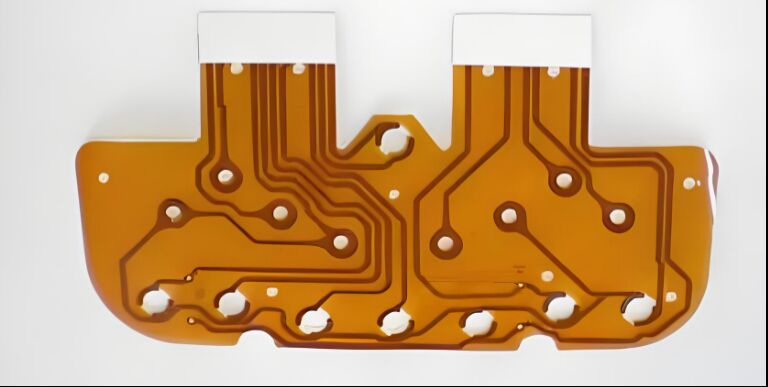

Yellow Coverlay Flexible PCB Board Featuring Suitable for Flexible Electronics

Product Description:

Flexible PCB Boards, also known as Flexible Printed Circuit Boards or Flexible Circuitry Boards, represent a revolutionary advancement in electronic design and manufacturing. These boards are designed to bend, flex, and twist without compromising their electrical integrity, making them an ideal choice for a wide range of applications where space constraints, weight reduction, and dynamic movement are critical. Our Flexible PCB Boards are crafted with precision and engineered to meet the highest standards, ensuring reliability and performance across various industries.

One of the standout features of our Flexible PCB Boards is their thickness, which ranges from an ultra-thin 0.1mm to 0.3mm. This thin profile allows for exceptional flexibility, enabling the circuitry to conform to complex shapes and fit into compact spaces where traditional rigid PCBs would be impractical. The varying thickness options provide designers with the adaptability to balance flexibility and mechanical strength according to their specific project requirements.

Our Flexible Printed Circuit Boards are available in 2 layers, offering versatility to accommodate different circuit complexities. Whether your application requires a simple single-layer design or a more intricate two-layer configuration, our flexible circuitry boards can be customized to suit your needs. This layer count flexibility allows for efficient signal routing, improved electrical performance, and enhanced durability, all while maintaining the lightweight and bendable nature of flexible PCBs.

Impedance control is a critical aspect of modern electronic design, especially for high-frequency and high-speed signal applications. Our Flexible PCB Boards come with impedance control capabilities, ensuring that signal integrity is maintained throughout the circuit. By precisely managing the impedance, we reduce signal loss, minimize interference, and enhance overall performance, making these boards highly suitable for advanced communication devices, medical equipment, and other sensitive electronic systems.

Precision is paramount in the production of Flexible Circuitry Boards, and our manufacturing process guarantees exceptional hole position accuracy within +/-0.003mm. This tight tolerance ensures that components fit perfectly, solder joints are reliable, and the overall assembly process is streamlined. High hole position accuracy is essential for maintaining the electrical and mechanical integrity of the board, especially in applications that demand high reliability and consistent performance.

Flexible PCB Boards offer numerous advantages beyond their flexibility. They contribute to weight reduction, which is crucial in aerospace, automotive, and wearable technology sectors. Their ability to absorb vibrations and withstand mechanical stress enhances the durability of the final product. Additionally, flexible circuitry boards simplify assembly processes by reducing the number of connectors and interconnections, which in turn lowers the risk of failure and improves overall system reliability.

In summary, our Flexible Printed Circuit Boards combine ultra-thin materials, precise manufacturing tolerances, and advanced impedance control to deliver superior performance in a flexible format. With layer options ranging from 1 to 2 layers and thicknesses from 0.1mm to 0.3mm, these boards are perfectly suited for applications that require adaptability, durability, and high electrical performance. Whether you are developing compact consumer electronics, complex medical devices, or innovative automotive systems, our Flexible PCB Boards provide the ideal solution for your flexible circuitry needs.

Choose our Flexible Circuitry Boards to experience cutting-edge technology that supports dynamic designs and enhances the functionality of your electronic products. With our commitment to quality and precision, you can trust that every Flexible Printed Circuit Board we deliver will meet your stringent requirements and help you achieve excellence in your projects.

Technical Parameters:
