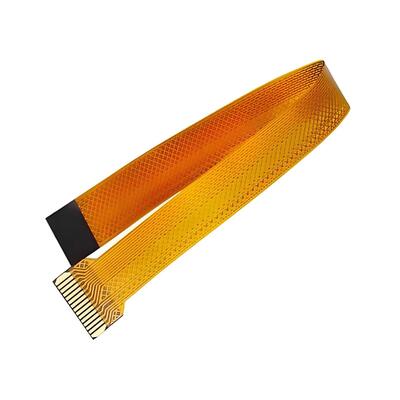

2 Layer Flexible Printed Circuit Board Designed with 2oz Copper Providing Flexible Electronics and Signal Control

Product Description:

The Flexible PCB Board is an advanced and versatile solution designed to meet the dynamic needs of modern electronic applications. Known for its exceptional flexibility, durability, and lightweight properties, this product stands out as a preferred choice for industries requiring reliable and compact circuit designs. Our Flexible Printed Boards are meticulously manufactured to ensure high performance, making them ideal for a wide range of devices, including wearable technology, medical instruments, automotive electronics, and consumer gadgets.

One of the key features of our Flexible PCB Board is its compliance with RoHS standards. This certification guarantees that the product is free from hazardous substances, aligning with global environmental regulations and promoting safer, eco-friendly electronic manufacturing practices. RoHS compliance not only enhances the safety of the final products but also contributes to sustainable development by reducing the environmental impact of electronic waste.

The finishing of the Flexible Printed Boards is done using Immersion Gold, a premium surface finish process that provides excellent solderability and protects the copper circuitry from oxidation and corrosion. Immersion Gold ensures a smooth, flat surface that is crucial for fine-pitch components and reliable electrical connections. This finish also enhances the overall lifespan and performance stability of the Flexible PCB Board, making it suitable for high-reliability applications.

Our Flexible PCB Board is available in a thickness range from 0.1mm to 0.3mm, offering versatility to accommodate various design requirements. The thin profile of these boards allows for compact assembly and greater design freedom, enabling the creation of innovative electronic products with space constraints. Despite their thinness, these Flexible Printed Boards maintain excellent mechanical strength and electrical integrity, ensuring consistent performance even in demanding conditions.

The coverlay material used in our Flexible Printed Boards is available in two distinct colors: yellow and white. These coverlays provide essential insulation and protection for the circuitry, safeguarding the boards against environmental factors such as moisture, dust, and mechanical stress. The choice of yellow or white coverlay allows for aesthetic customization and better visual inspection during manufacturing and assembly processes. Additionally, the coverlay contributes to the flexibility of the PCB, allowing it to bend and twist without compromising the electrical connections.

Flexible PCB Boards are increasingly becoming a critical component in the advancement of modern electronics due to their adaptability and efficiency. Our product combines high-quality materials, precise manufacturing processes, and strict quality control measures to deliver Flexible Printed Boards that meet the highest industry standards. Whether you are developing compact wearable devices, complex automotive systems, or cutting-edge medical equipment, our Flexible PCB Board provides the reliability and performance you need.

In summary, the Flexible PCB Board offers a blend of flexibility, durability, and environmental compliance with RoHS certification. Its immersion gold finish ensures superior surface quality and solderability, while the thickness range from 0.1mm to 0.3mm caters to diverse design needs. The yellow and white coverlay options provide excellent protection and customization possibilities. By choosing our Flexible Printed Boards, you invest in a product that supports innovation, sustainability, and high-performance electronic solutions.

Technical Parameters:

Applications:

The Customized Flexible PCB Board, originating from China, is designed to meet the evolving needs of modern electronics with its exceptional adaptability and durability. Available in thicknesses ranging from 0.1mm to 0.3mm, this product offers a versatile solution for various electronic applications. Featuring high-quality 1oz copper and available in 2 layer configurations, these Flexible Circuitry Boards provide reliable electrical performance with excellent mechanical flexibility. The coverlay options of yellow and white further enhance protection and aesthetic appeal, making these Flexible Printed Circuit Boards ideal for diverse usage scenarios.

Flexible Circuit Boards are extensively used in industries where space-saving and weight reduction are crucial. For example, in wearable technology, such as smartwatches and fitness trackers, the thin and bendable nature of these Flexible Printed Circuit Boards allows seamless integration into compact devices that conform to the human body. Similarly, they are vital in medical devices, including portable diagnostic equipment and implantable devices, where flexibility and reliability can significantly improve patient outcomes.

In consumer electronics, Flexible Circuitry Boards enable the production of thinner smartphones, tablets, and laptops. Their ability to bend and fold without losing functionality supports innovative designs and enhances device durability. Automotive applications also benefit from Flexible Circuit Boards, particularly in modern vehicles that require complex wiring harnesses for sensors, infotainment systems, and advanced driver-assistance systems (ADAS). These boards contribute to reducing the overall weight of the vehicle, improving fuel efficiency and performance.

Industrially, Flexible Printed Circuit Boards are used in robotics and aerospace sectors where high-performance, lightweight, and flexible electronics are necessary. The Customized Flexible PCB Board’s reliable shipping methods, including air freight via DHL, FedEx, UPS, or TNT, ensure timely delivery for critical projects worldwide. Whether it’s prototyping or mass production, these Flexible Circuit Boards provide the precision and quality demanded by cutting-edge applications.

Overall, Customized Flexible PCB Boards are a cornerstone in the advancement of electronic device design, offering unmatched adaptability, durability, and performance across a wide range of application occasions and scenarios.

Customization:

Our Customized brand Flexible PCB Board offers exceptional product customization services to meet your specific requirements. Manufactured in China, these Flexible Printed Boards are designed with high-quality 1oz copper to ensure excellent conductivity and durability.

We provide options for coverlay colors including Yellow and White, allowing you to choose the best fit for your application.

Our Flexible Circuitry Boards are available in 1-2 layer configurations, providing flexibility and versatility for various electronic designs. Whether you need a simple single-layer or a more complex two-layer Flexible PCB Board, we can customize the product to your exact specifications.

Choose our Customized Flexible PCB Board for your next project and benefit from tailored solutions that combine quality materials with expert craftsmanship, ensuring your flexible printed board meets all your functional and design needs.
