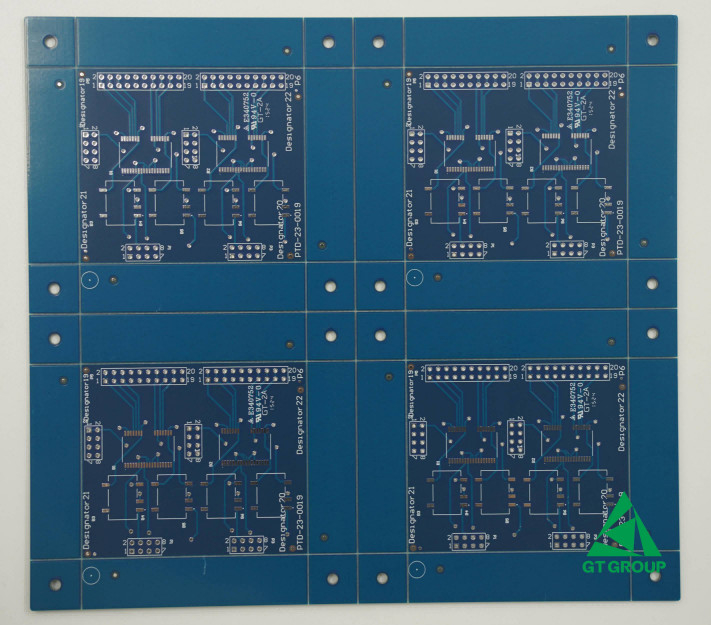

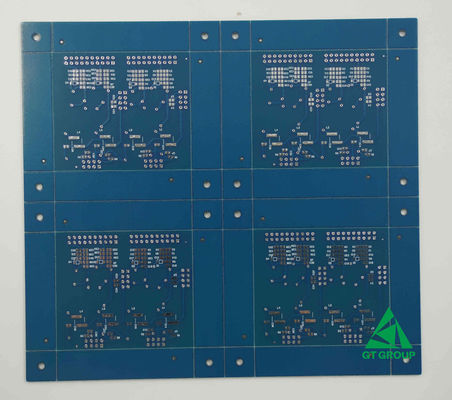

Customized Copper Circuit Board 3 Layer With LF HAL And Blue Mask For Multiple Panel

Place of Origin	China
Brand Name	Customized
Certification	ISO9001,UL

Product Details

Layer Count:

3 Layer

Copper Thickness:

1/1/1oz

Silkscreen Color:

White

Board Thickness:

1.6mm

Min Trace Width/Space:

0.29/0.29 Mm

Solder Mask Color:

Bule

Surface FnishRing:

LF HAL

Highlight:

Blue Mask Copper Circuit Board

3 Layer Copper Circuit Board

Customized Copper Circuit Board

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiation

Packaging Details

Vacuum package

Delivery Time

5-7 days

Payment Terms

Negotiation, T/T

Product Description

Product parameters:

Layer	3 layer
Materail	FR4 TG135 1.6mm
Copper thickness	1/1/1OZ
Surface finish	LF HASL
Solermask	Blue
Technology	Two different board in panel

Support and Services:

Our Copper circuit PCB product technical support and services include:

Assistance in designing Copper PCB board according to customer specifications
Expertise in providing technical recommendations for Copper PCB fabrication and assembly
Support in resolving any technical issues related to Copper PCB board
Training and guidance on the use and application of Copper PCB board
Consultation services for Copper PCB projects
Quality assurance and testing of Copper PCB circuit board
