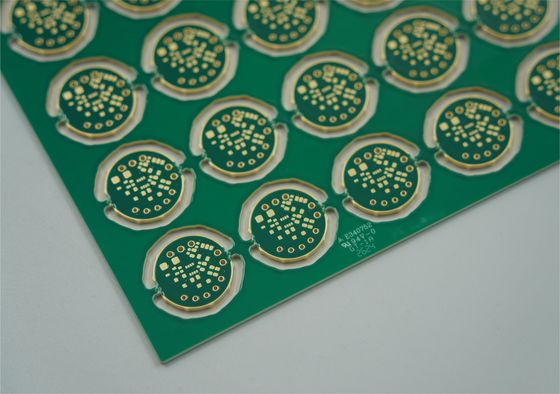

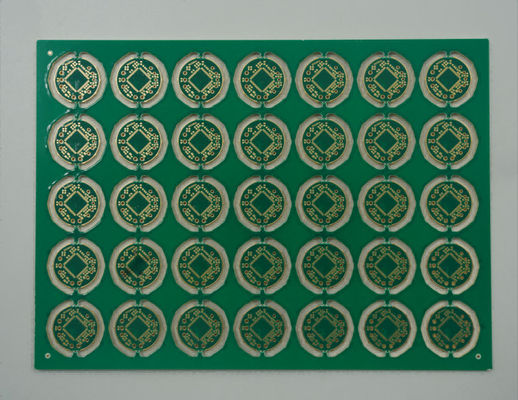

2L Rogers Circuit Board RO4003C Material 1.6mm 1OZ Edge Plating Green Soldermask EING

Product description:

Rogers PCB board has edge plating technology. Edge plating is a special process for circuit boards in which a layer of copper is plated on the board's edge. This process is used for several purposes:
- To protect the board's exposed edges from damage during handling and assembly.
- To improve the board's electrical performance by reducing its impedance and improving its signal integrity.
- To enhance the board's EMI shielding and grounding properties.
The process of edge plating of Rigid pcb is a complex and precise one that involves several steps. First, the circuit board's edges are cleaned and prepared, then a thin layer of plating resist is applied to the board. A layer of copper is then plated onto the board's edge using an electrolytic process. The plating process of Rogers PCB is closely monitored to ensure that the plating layer is uniform and adheres to the board's edge properly. Once the plating is complete, the plating resist is removed, and the board is inspected for defects.
Edge plating is a specialized process that requires careful attention to detail and precision. It is typically used in high-end applications such as aerospace, defense, and medical equipment where reliability and performance are critical.

Product features:
