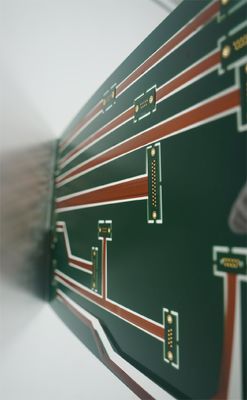

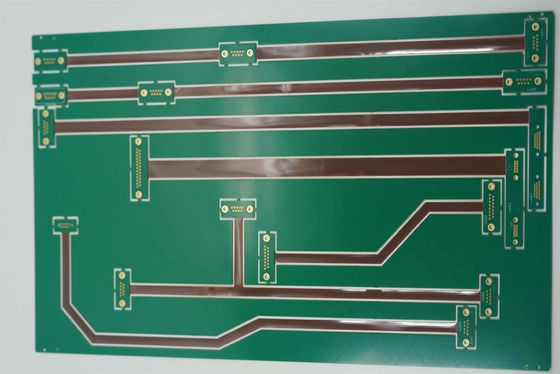

4 Layer Rigid Flex Circuit Board High TG EING 1OZ Multivariety Boards For Consumer Application

Brand Name:	Customized
MOQ:	1pcs
Price:	Negotation
Payment Terms:	Negotation, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Type:

Rigid Flex PCB

Materail:

FR4 S1000-2 And Polymide

Board Thickness:

1.2mm Rigid PCB And 0.2 Flexible PCB

Surface Finish:

Immersion Gold

Board Size:

504* 290mm

Multilayer Boards:

7 Different Board

Packaging Details:

Vacuum package

Highlight:

High TG Rigid Flex Circuit Board

4 Layer Rigid Flex Circuit Board

Multivariety Rigid Flex Circuit Board

Product Description

Rigid flex circuit board description:

Rigid flex PCB is a type of rigid-flex circuit board that has several unique performance characteristics and components.

- High reliability and stability: Rigid flex PCB uses a combination of rigid and flexible materials, which can resist mechanical stress and vibration, thereby improving its reliability and stability.
- Excellent signal transmission performance: Since the design of Rigid flex PCB can reduce the number of connection points on the circuit board, it can reduce noise and interference during signal transmission.
- Space-saving: Rigid flex PCB does not require connectors or plugs, so it can save space on the PCB and improve the overall availability of the circuit board.
- Relatively low production cost: Compared with using flexible wire harnesses and rigid circuit boards to make connections, Rigid flex PCB can easily achieve integrated product design, thus reducing production costs.

Overall, Rigid flex PCB is a highly suitable circuit board type for high stability and high reliability applications because it can be integrated with other components very tightly and is suitable for the design of various compact devices and systems.

Product features:

Product type	Rigid flex PCB
Materail	FR4 S1000-2 and Polymide
Board thickness	1.2mm Rigid PCB and 0.2 Flexible PCB
Surface finish	Immersion gold
Board size	504* 290mm
Multilayer boards	7 different board included
