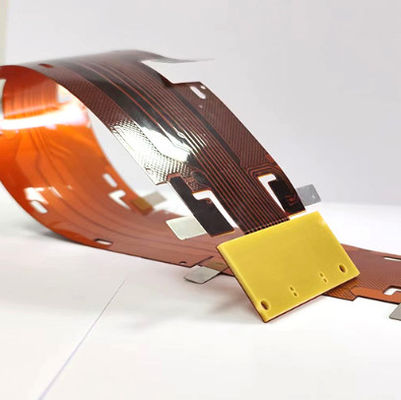

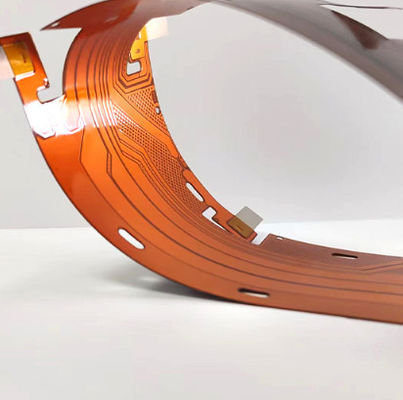

2 Layer Rigid-Flex PCBA For Automotive Lithium Battery CCS Integrated Bus

Name: 2 Layer Rigid-Flex PCBA For Automotive Lithium Battery CCS Integrated Bus
Brand: GT SMART (Changsha) Technology Co., Limited
SKU: FR4 Flex Rigid PCB
Availability: InStock

Brand Name:	Customized
Model Number:	FR4 Flex Rigid PCB
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1pcs per 1 week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL,ISO9001

PCB Type:

Rigid Flex PCB

Materail:

FR4,Polymide

Soldermask:

Yellow Coverlay

Silkscreen:

White

Surface Treatment:

Immersion Gold

High Light:

Rigid Flex Pcba, Multi Layer Flex Pcba, FR4 Flex Rigid Pcb

Packaging Details:

Vaccum package

Highlight:

Automotive Lithium Battery Rigid-Flex PCBA

CCS Integrated Bus Rigid-Flex PCBA

2 Layer Rigid-Flex PCBA

Product Description

Functions and features of the PCBA:

-- The rigid flexible circuit board replaces the voltage sampling harness, using the flexible circuit board's higher tolerance temperature (the substrate is generally polyimide, The general withstand temperature can reach 260 degrees Celsius) and the objective structural design of the possibility of short circuit is very small (the printed line is enclosed in the substrate parallel distribution, the possibility of accident fusing is greater than short circuit > Improve the reliability of the power battery module.

-- In the battery module, the scheme that uses the "FLEXIBLE PRINTED CIRCUIT (FPC)+ bonding process" to sample the voltage of each single battery has the advantages of low cost, high space utilization, and automated production compared with the traditional wire harness sampling scheme.
