0.2-3.2mm Thickness Flexible Printed Circuit Board with HASL Surface Finish
  • 0.2-3.2mm Thickness Flexible Printed Circuit Board with HASL Surface Finish

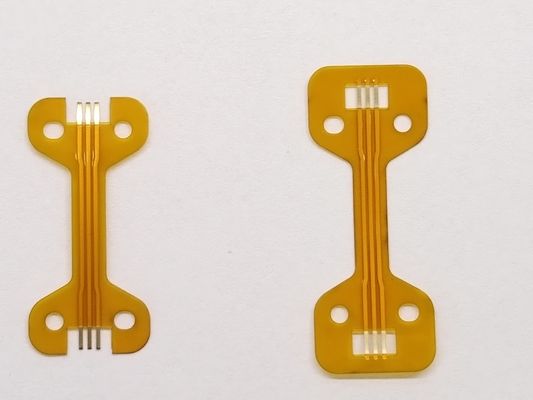

0.2-3.2mm Thickness Flexible Printed Circuit Board with HASL Surface Finish

Product Details
Min. Line Width:
0.1mm
Surface Finish:
HASL, ENIG, OSP, Etc.
Application:
Industrial, Automotive, Etc.
Board Thickness:
0.2-3.2mm
Warranty:
1 Year
Board Type:
PCB
Silkscreen Color:
White, Black, Yellow, Etc.
Layer Count:
1-20
Highlight:

3.2mm Flexible Printed Circuit Board

,

HASL Flexible Printed Circuit Board

Product Description

Product Description:

Flexible Circuitry Board, also known as Flexible PCB Boards or Flexible PCB Board, is made of flexible material and is used in a wide range of industries and applications. It has a variety of surface finishes such as HASL, ENIG, OSP, etc. The minimum line width of the board is 0.1mm, making it suitable for various industrial and automotive applications. Additionally, it also supports various silkscreen colors such as white, black, yellow, etc. The lightweight and flexible nature of the board make it a perfect choice for a variety of applications.

Flexible Circuitry Board offers an excellent combination of flexibility and durability, making it a great choice for a variety of applications. It is highly reliable and can be used in extreme conditions such as high temperatures, high pressures, and harsh environments. The lightweight and flexible nature of the board also makes it easy to install and assemble. Furthermore, the board is cost-effective and can be customized to meet specific requirements.

Flexible Circuitry Board is a great choice for various industries and applications. Its flexible nature, durability, reliability, and cost-effectiveness make it an ideal choice for a variety of applications. It is highly versatile and can be used in a variety of industries and applications. The lightweight and flexible nature of the board make it perfect for use in various industrial and automotive applications.



Features:

  • Product Name: Flexible Printed Board, Flexible Circuit Board, Flexible Printed Circuit Boards
  • Copper Thickness: 1-3oz
  • Silkscreen Color: White, Black, Yellow, Etc.
  • Solder Mask Color: Green, Blue, White, Etc.
  • Min. Line Spacing: 0.1mm
  • Min. Line Width: 0.1mm


Technical Parameters:

Board Type Flexible PCB Board
Material Flexible
Application Industrial, Automotive, Etc.
Solder Mask Color Green, Blue, White, Etc.
Layer Count 1-20
Copper Thickness 1-3oz
Surface Finish HASL, ENIG, OSP, Etc.
Min. Hole Size 0.2mm
Silkscreen Color White, Black, Yellow, Etc.
Board Thickness 0.2-3.2mm


Applications:

Flexible PCB Boards are reliable and highly versatile circuit boards with a 1 Year Warranty. These PCB Boards are made from flexible circuitry that can be bent or twisted without breaking, making them ideal for applications that require a high degree of flexibility. They have a minimum line width of 0.1mm, allowing for intricate designs. The solder mask comes in a variety of colors, such as green, blue, white, etc., and the board thickness can range from 0.2 to 3.2mm. Flexible Printed Boards are perfect for applications that require a high degree of flexibility, reliability, and intricate design.



Customization:

Flexible Printed Board Customized Services

  • Solder Mask Color: Green, Blue, White, Etc.
  • Copper Thickness: 1-3oz
  • Min. Line Spacing: 0.1mm
  • Min. Line Width: 0.1mm
  • Warranty: 1 Year

We provide customized services for Flexible Printed Boards, Flexible Circuit Boards, and Flexible Printed Board, with guaranteed quality and competitive prices.



FAQ:

  • Q: What is a Flexible PCB Board?
  • A: A Flexible PCB Board is a printed circuit board with flexible, or easily bendable, circuits that allow for more intricate design and space-saving options.
  • Q: What are the advantages of Flexible PCB Board?
  • A: Flexible PCB Board offer several advantages such as lighter weight, better flexibility, increased circuit density, and improved shock and vibration resistance.
  • Q: What is the manufacturing process of Flexible PCB Board?
  • A: The manufacturing process of Flexible PCB Board involves several steps such as designing the circuit, etching the circuit, laminating the copper and dielectric layers, applying the solder mask, and adding any components.
  • Q: What materials are used to make Flexible PCB Board?
  • A: Flexible PCB Board are typically made with polyimide-based materials such as Kapton, Teflon, and polyimide film.
  • Q: What are the applications of Flexible PCB Board?
  • A: Flexible PCB Board are used in a variety of applications such as medical and industrial devices, automotive and aerospace systems, and consumer electronics.
