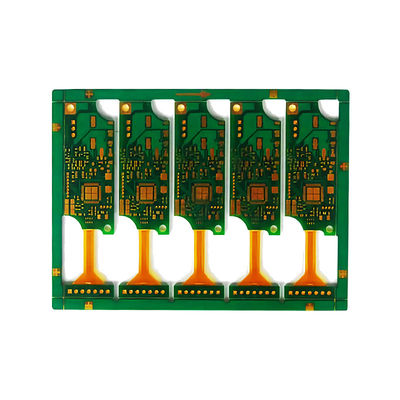

HASL Rigid Flex PCB 4MIL Hole Size Golden Triangle PCB 2 Layer

Basic Information
Base Material: Fr-4, Fr-5, High-Tg, Halogen Free, Rogers Number Of Layers: 2-4-6-8-10-12-16-20Layer
Min. Line Width/Spacing: 3/3MIL Surface Finishing: HASL(lead Free) / Immersion Gold /osp / Immersion Tin/Immersion Silver
Copper Thickness: 1~3 Oz Min. Hole Size: 4MIL
Highlight:

HASL Rigid Flex PCB

,

Rigid Flex PCB 4MIL

,

Golden Triangle PCB 2 Layer

Golden Triangle Rigid Flex PCB/ 2 Layer /4MIL Hole Size/ HASL Surface Treatment



Production Introduction:

Rigid flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.



Applications:

Rigid flexible PCBs offer a wide array of applications, ranging from military weaponry and aerospace systems to cell phones and digital cameras.In consumer products, rigid flex doesn't just maximize space and weight but greatly improves reliability, eliminating many needs for solder joints and delicate, fragile wiring that are prone to connection issues. These are just some examples, but rigid flex PCBs can be used to benefit nearly all advanced electrical applications including testing equipment, tools and automobiles.
