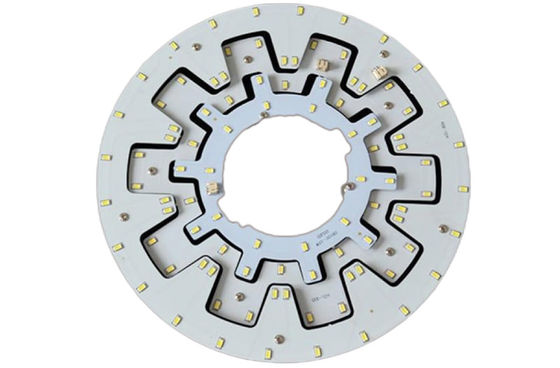

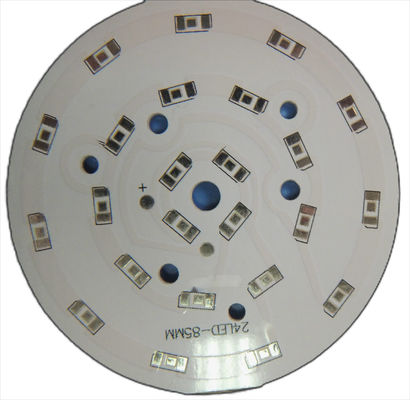

Rohs Compliant Black Silk Screen Aluminum Printed Circuit Board with Precision Hole Tolerance

Product Description:

The Aluminum PCB Board is a Copper Based Printed Circuit Board that is designed to meet the needs of various industries. It can be used in automotive, LED lighting, power supplies, and other electronic devices that require high heat dissipation. This product is also ideal for applications that require high power density and high thermal conductivity.

The Aluminum PCB Board comes with different surface finishes such as HASL, OSP, ENIG, Immersion Silver, Immersion Tin. These finishes provide excellent protection against corrosion, oxidation, and other environmental factors. The HASL finish is ideal for low-cost applications while the ENIG finish is perfect for high-end products that require high reliability and durability.

The Aluminum PCB Board comes with a black silk screen that provides excellent contrast and visibility. This feature is essential for identifying different components and their functions. The black silk screen is also resistant to wear and tear, ensuring that the product remains readable and easy to use for a long time.

The Aluminum PCB Board is a high-quality product that undergoes various testing procedures such as AOI, X-Ray, Flying Probe, and others. These tests ensure that the product meets the highest standards of quality, reliability, and performance. The AOI test checks for defects in the soldering process, while the X-Ray test checks for defects in the inner layers of the board. The Flying Probe test checks for electrical connectivity, ensuring that the product works correctly.

In conclusion, the Aluminum PCB Board is a high-quality and reliable electronic component that is suitable for a wide range of applications. It is a Copper Based Printed Circuit Board that is designed to provide excellent thermal conductivity and heat dissipation. It is available in different sizes according to customer requests and comes with different surface finishes and black silk screen. It undergoes various testing procedures to ensure that it meets the highest standards of quality, reliability, and performance.

Features:

• Product Name: Aluminum PCB Board
• Size: According To Customer Request
• Silk Screen: Black
• Silkprint: White
• Material: Aluminum Base
• Thermal Conductivity: 1.0-3.0 W/mK
• Also known as: Aluminum Core Printed Circuit Board, IMS (Insulated Metal Substrate) Printed Circuit Board, Metal Substrate Printed Circuit Board

Technical Parameters:

This is a technical parameter table for the IMS (Insulated Metal Substrate) Printed Circuit Board or Aluminum Core Printed Circuit Board or IMS (Insulated Metal Substrate) Printed Circuit Board.

Applications:

The Aluminum PCB Board is commonly used in SMT PCB Assembly, which is suitable for LED lighting, power supplies, automotive, and other high-performance applications. The Aluminum Core Printed Circuit Board is an excellent choice for applications that require efficient heat dissipation. The Copper Based Printed Circuit Board is also available as an alternative for applications that require a higher electrical conductivity.

The Aluminum PCB Board is suitable for use in various scenarios, such as industrial control systems, medical equipment, and communication devices. It is also an excellent choice for aerospace and military applications, where high reliability and durability are essential. The product is tested using various methods, including AOI, X-Ray, Flying Probe, and other testing methods to ensure high quality and reliability.

In conclusion, the Aluminum PCB Board is a versatile product that offers high thermal conductivity, reliability, and durability. It is a perfect choice for various applications, especially those that require efficient heat dissipation. Whether you need Copper Based Printed Circuit Board or Aluminum Core Printed Circuit Board, the customized product is designed to meet your specific needs and requirements.
