1.5mm Aluminum Base SMT PCB Assembly with 1.0-3.0 W/mK Thermal Conductivity
  • 1.5mm Aluminum Base SMT PCB Assembly with 1.0-3.0 W/mK Thermal Conductivity
  • 1.5mm Aluminum Base SMT PCB Assembly with 1.0-3.0 W/mK Thermal Conductivity

1.5mm Aluminum Base SMT PCB Assembly with 1.0-3.0 W/mK Thermal Conductivity

Place of Origin China
Brand Name Customized
Model Number Aluminum PCB Board
Product Details
Product Type:
SMT PCB Assembly
Thermal Conductivity:
1.0-3.0 W/mK
Rohs Compliant:
Yes
Silk Screen:
Black
Marterial:
Aluminum Base
Thichkness:
1.5mm
Silkprint:
White, Black
Trade Terms:
EX-WORK, DDU TO DOOR, FOC
Surface Finish:
EING, OSP
Highlight:

1.5mm Aluminum Base PCB Assembly

,

SMT Aluminum Base PCB Assembly

,

1.5mm SMT PCB Assembly

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
Vacuum package
Delivery Time
5-8 work days
Payment Terms
T/T
Supply Ability
20000m2 per month
Product Description

Product Description:

Product Summary: Aluminum PCB Board

Our Aluminum PCB Board is a high-quality printed circuit board that is perfect for electronic applications that require good heat dissipation. The board is made from an aluminum base material which provides excellent thermal conductivity. It is also a great alternative to traditional copper based printed circuit boards as it has a lower thermal expansion coefficient.

The hole tolerance of our Aluminum PCB Board is PTH: +/-3mil NPTH: +/-2mil. This means that the board can accommodate both plated through-hole (PTH) and non-plated through-hole (NPTH) components with high precision. The board undergoes various testing procedures such as AOI, X-Ray, Flying Probe, and many more to ensure that it meets our quality standards.

The silkprint on our Aluminum PCB Board is white, which makes it easy to identify the components and their placements. The board has a thickness of 1.5mm, which makes it sturdy and durable. It can withstand high temperatures and is resistant to corrosion and moisture.

Our Aluminum PCB Board is an excellent choice for applications that require high thermal conductivity and durability. It can be used in various electronic devices such as LED lights, power supplies, automotive electronics, and many more. The board is easy to assemble and can be customized to meet your specific requirements.

If you're looking for a high-quality alternative to copper based printed circuit boards, our Aluminum PCB Board is the perfect choice. Its excellent thermal conductivity, durability, and precision make it an ideal choice for various electronic applications.



Features:

  • Product Name: Aluminum PCB Board
  • Product Type: SMT PCB Assembly
  • Surface Finish: HASL, OSP, ENIG, Immersion Silver, Immersion Tin
  • Thermal Conductivity: 1.0-3.0 W/mK
  • Trade Terms: EX-WORK, DDU TO DOOR, FOC
  • Size: According To Customer Request
  • Product Attributes: IMS (Insulated Metal Substrate) Printed Circuit Board, Metal Substrate Printed Circuit Board, Metal Substrate Printed Circuit Board


Technical Parameters:

Copper Based Printed Circuit Board Aluminum Printed Circuit Board
Surface Finish HASL, OSP, ENIG, Immersion Silver, Immersion Tin
Hole Tolerance PTH: +/-3mil NPTH: +/-2mil
Thermal Conductivity 1.0-3.0 W/mK
Rohs Compliant Yes
Silkprint White
Material Aluminum Base
Silkscreen Color White, Black, Yellow
Size According To Customer Request
Trade Terms EX-WORK, DDU TO DOOR, FOC


Applications:

The Aluminum PCB Board is suitable for use in a variety of application occasions including:

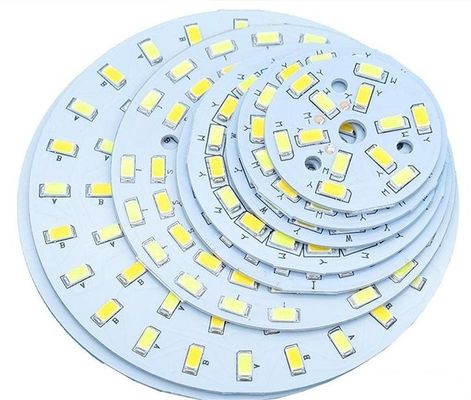

  • LED Lighting: Aluminum Printed Circuit Board is widely used in LED lighting applications due to its high thermal conductivity. These boards can easily handle the high heat generated by LED lighting systems, extending the lifespan of the product.
  • Power Supplies: Aluminum Core Printed Circuit Board is an ideal choice for power supply applications due to its excellent thermal conductivity. These boards can efficiently dissipate heat, making them less prone to overheating and failure.
  • Automotive Electronics: Aluminum PCB Board is also used in automotive electronics due to their ability to handle high temperatures and thermal stress. These boards can withstand the harsh environments and the vibration in vehicles.
  • Solar Panels: Aluminum PCB Board is also used in solar panel applications as it can withstand extreme temperatures and weather conditions. The efficiency of the solar panel can be improved by using Aluminum PCB Board.

The Aluminum PCB Board is available in different sizes according to customer request. It has a thickness of 1.5mm and is available with various surface finishes including HASL, OSP, ENIG, Immersion Silver, and Immersion Tin. The silk screen is black, which makes it easy to read the markings and labels on the board.

Overall, the Customized Aluminum PCB Board is a versatile and reliable choice for any application that requires efficient heat dissipation and durability. It is a high-quality product that is manufactured in China, ensuring that it meets the standards of international quality.
