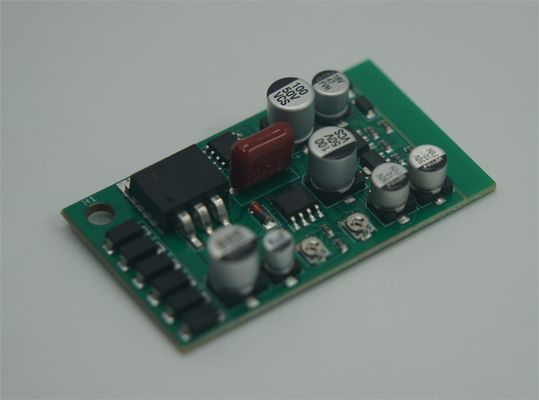

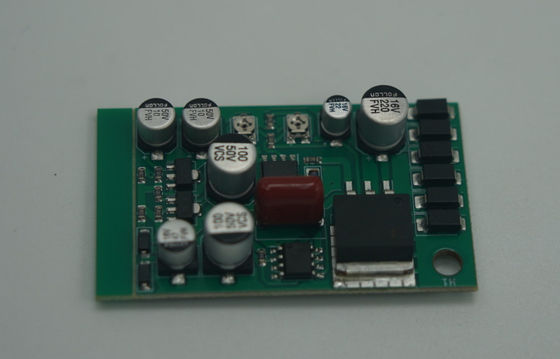

2 Layer Board Pcb Assembly 1OZ FR4 TG135 1.6mm Green Soldermask As Driver Boaord

Brand Name:	Customized
MOQ:	Negotiation
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Layer:

2 Layer

Material:

FR4 TG135

Copper Thickness:

1/1OZ

Surface Finish:

LF HAL

Soldermask:

Green

Assembly:

SMT

Packaging Details:

Vacuum package

Highlight:

1.6mm Board Pcb Assembly

1OZ FR4 TG135 Board Pcb Assembly

Green Soldermask Board Pcb Assembly

Product Description

SMT pcb assembly (Surface Mount Technology) is a widely used method for assembling circuit boards. It involves placing and soldering surface-mount components directly on the surface of the PCB (Printed Circuit Board).

Here are the key steps involved in the SMT PCB board process:

1) PCB Fabrication

2) Stencil Creation

3) Solder Paste Application

4) Component Placement

5) Reflow Soldering

6) Inspection

7) Secondary Processes

8) Final Testing and Packaging

It's important to note that the SMT PCB board process may vary depending on the specific manufacturing setup, equipment, and requirements. Manufacturers often follow industry standards and best practices to ensure efficient and high-quality SMT assembly.
