Rigid Flex PCB
Created with Pixso.

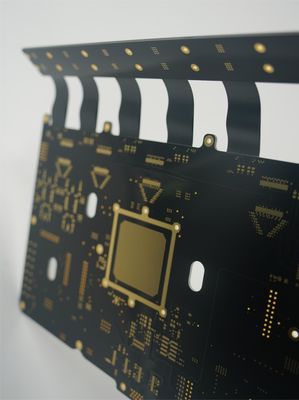

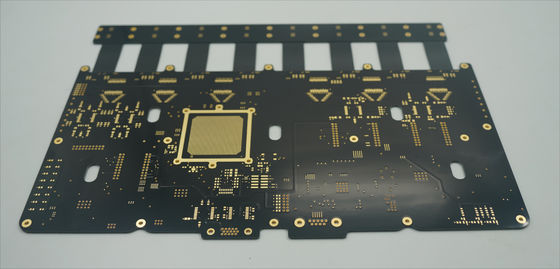

Flexible Rigid Pcb 14L PCB AND 6 Layer FPC Tg170 & Black PI With Blind Holes

Flexible Rigid Pcb 14L PCB AND 6 Layer FPC Tg170 & Black PI With Blind Holes

Flexible Rigid Pcb 14L PCB AND 6 Layer FPC Tg170 & Black PI With Blind Holes

Brand Name: Customized
MOQ: 1pcs
Price: Negotiation
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001
Layer:
14L PCB+ 6 Layer FPC
Copper:
1/1/0.5/0.5/0.5/0.5/1/1/0.5/0.5/0.5/0.5/1/1
Materail:
FR4 TG170 + PI
Surface Finish:
EING
Soldermask:
Black+ Black Coverlay
Holes:
Blind Hole: 1-2, 13-14; Burid Hole: 2-13
Plug Holes:
Resin Plugged
Packaging Details:
Vacumme package
Highlight:

blind holes Flexible Rigid pCB

,

14L Flexible Rigid pCB

,

black PI Flexible Rigid pCB

Product Description

14 layer rigid flex board with high technology requirement for it.

14 high Tg PCB and 6 layer FPC, please find following stack up.

Flexible Rigid Pcb 14L PCB AND 6 Layer FPC Tg170 & Black PI With Blind Holes 0
