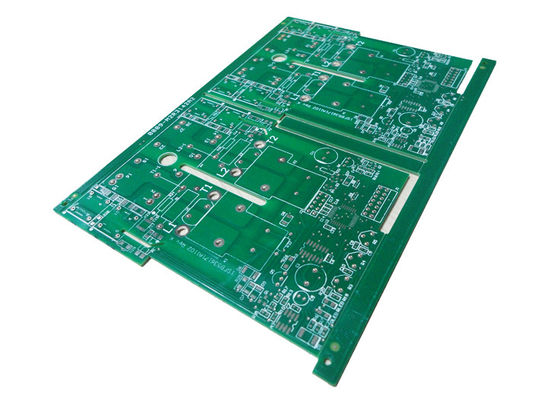

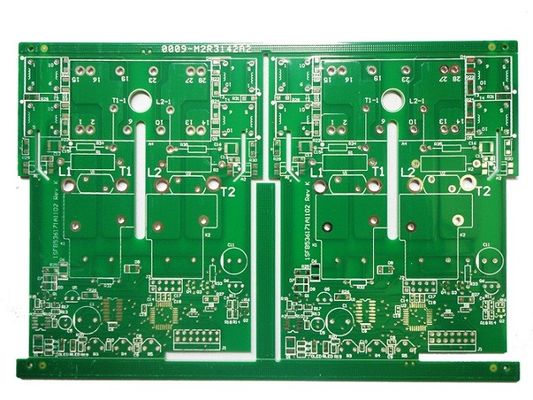

2 Layer PCB 3OZ High TG Copper Board With Power Supply
  • 2 Layer PCB 3OZ High TG Copper Board With Power Supply
  • 2 Layer PCB 3OZ High TG Copper Board With Power Supply

2 Layer PCB 3OZ High TG Copper Board With Power Supply

Place of Origin China
Brand Name Customized
Certification UL, ISO90001
Model Number High TG PCB
Product Details
Layer:
2 Layer
Material:
FR4 TG170 1.6MM
Finished Copper:
3oz
Hole Copper Thickness:
25.4um Min
Minimum Line Space:
0.25mm/0.35mm
Surface Finishing:
LF HASL
Application Area:
Power Supply
Highlight:

High TG 2 Layer PCB

,

power supply 2 Layer PCB

,

3OZ 2 layer pcb

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Quoted
Packaging Details
Vacuum package
Delivery Time
5-7 working days
Payment Terms
T/T
Supply Ability
1m2 per 1 week
Product Description

Power PCB is required high reliable and high quality requirement, the design, production and process control needs to be done per specification and design requirement. Clearly define the manufacturing specifications for the power PCB, including board dimensions, layer stack-up, copper thickness, and minimum trace width and spacing. These specifications should be based on the electrical and thermal requirements of the power supply.



Materail FR4 TG170 1.6mm
Copper thickness 3/3oz
Hole copper thickness  25.4um min
Surface finish  LF HAL
