ODM Power PCB Assembly LF HASL Transformer PCB Immersion Gold

Basic Information
Layer: 2-20L Material: FR4 TG150, TG170
Copper Thickness: 1-5OZ Surface Finish: LF HASL, Immersion Gold,OSP
Speical: Burid Hole, Resin Plugging+hole Plated Over; Edge Plated, PI OEM/ODM: YES
Highlight:

ODM Power PCB Assembly

,

Power PCB Assembly LF HASL

,

Transformer PCB Immersion Gold

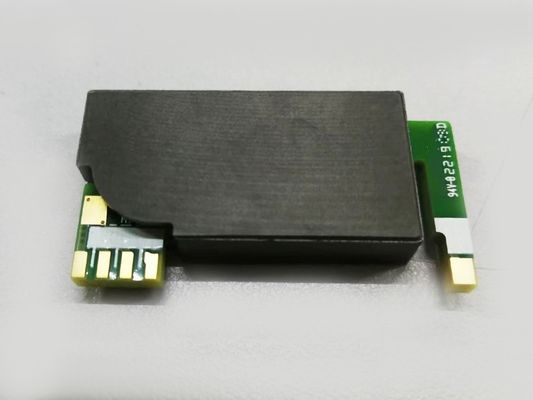

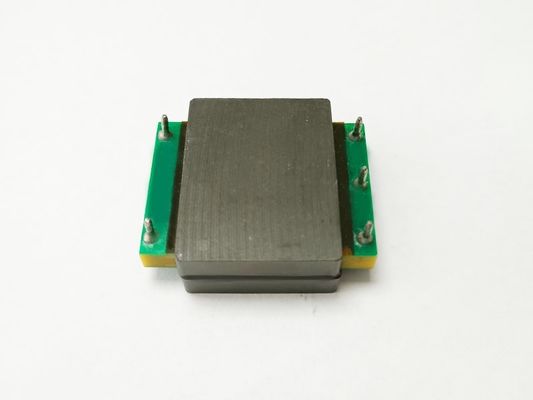

Transformer PCB assembly core magnetic added/2-20L/FR4/1-5OZ/Burid hole



Winding PCB is normally applied to transformer product and adapter. It is widely applied the consumer,communication, automotive industry.


1. They required high technology requriement such as:


1)Material:high TG material: Critical RC% and copper foil choose.
2)Copper thickness: heavy copper 3OZ to 10OZ.
3)Special technology burid holes, depth drilling, PI materail used etc.
4)Resin plugging+hole plated over.
5)Special soldermask to be taken high voltage.


2. The PCB needs to be tested as following:


1) Resistance test, inductance test, high voltage test and even capacitance test, Q value etc.

2) Reliability test: CAF test, solderability test,thermal shock test, temperature cycling test etc.



How to know the dielectric thickness can be withstand voltage value? Is the same voltage level with different kind materails?



Call me,let us disscuss their details.
