Heavy Copper PCB
Created with Pixso.

3oz 12 Layer Heavy Copper PCB FR4 TG170 PCB EING For BMP Project

3oz 12 Layer Heavy Copper PCB FR4 TG170 PCB EING For BMP Project

Brand Name: Customized
MOQ: Negotiable
Price: Negotiable
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
UL,ISO9001
Layer:
12L
Materail:
FR4 TG170 3.8mm
Copper Thickness:
2/4/4/4/4/4/4/4/4/4/4/2OZ
Surface Finish:
EING
Speical:
Resin Plugging+ Hole Plated Over,depth Drilling
Packaging Details:
Vaccum package
Highlight:

12 Layer Heavy Copper PCB

,

3oz Heavy Copper PCB

,

TG170 PCB

Product Description

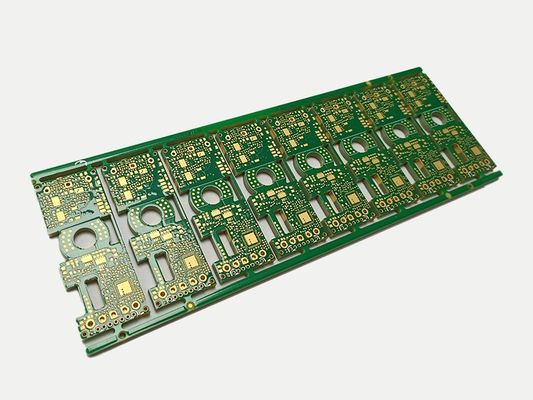

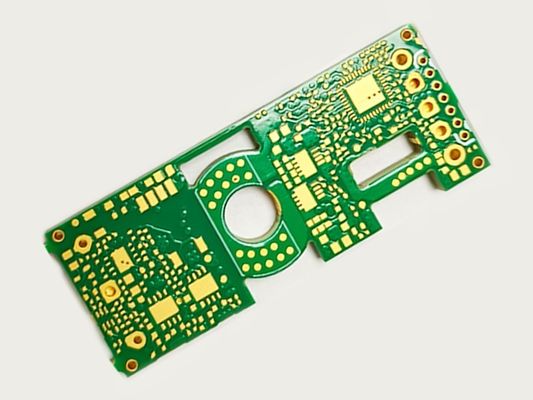

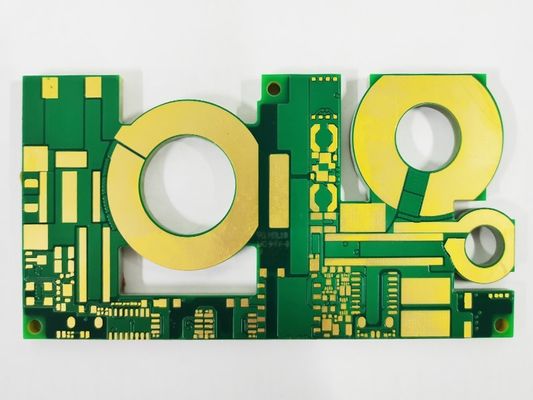

12L/BMP project/3oz/FR4/TG170/EING/Resin plugging/hole plated over/depth drilling



Heavy copper PCB is normally applied to transformer product and BMP power products. It is widely applied the consumer,communication, automotive industry.


1. They required high technology requriement such as:


1) Material:high TG material: Critical RC% and copper foil choose.
2)Copper thickness: heavy copper 3OZ to 10OZ,
3) Special technology burid holes, depth drilling, PI materail used etc.
4)) Resin plugging+hole plated over,
5)Special soldermask to be taken high voltage.


2. The PCB needs to be tested as following:


1) Resistance test, inductance test, high voltage test and even capacitance test, Q value etc.

2) Reliability test: CAF test, solderability test,thermal shock test, temperature cycling test etc.



How to know the dielectric thickness can be withstand voltage value? Is the same voltage level with different kind materails?



Call me,let us disscuss their details.
