Electronics Aluminum PCB Board Black / White Aluminium Substrate PCB

Basic Information
Layer Count: 1 Copper Thickness: 2/0
Board Thickness: 1.67 Min Hole Size: 1.75
Aspect Ratio: 1.05 Material: Aluminium
Surface Treatment: HASL Application: Electronics / Aerospace

Electronics Aluminum PCB Board


Aluminum PCB Board Black


Aluminium Substrate PCB

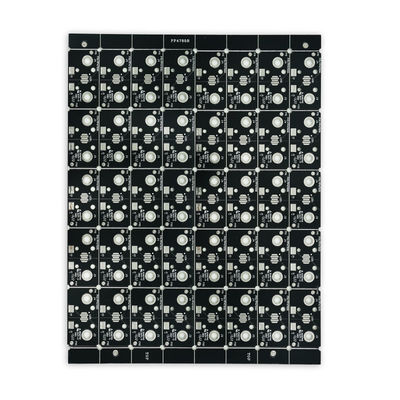

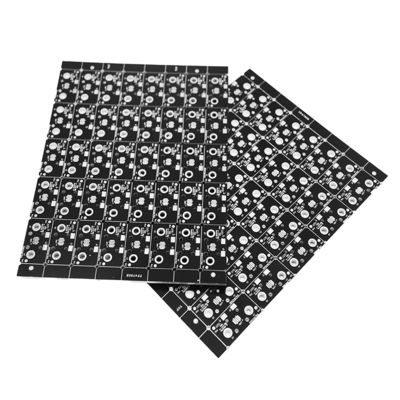

1 Layer Aluminum PCB/HASL/2oz/182.84mm*140.00mm/Black/White


This is a 1 layer Aluminum PCB,the Aluminum based materials are specified to use AL-01-B30, with a medium thickness of ≤ 110um.Its ink uses Sun's PSR-4000BN series.


Aluminum PCBs are created by bonding a layer of aluminum onto a substrate material. This layer of aluminum provides increased thermal performance, electrical conductivity, and mechanical strength. It also provides a higher level of corrosion resistance than traditional copper-based PCBs,and helps to reduce the weight of the PCB, which is especially important in applications like aerospace and automotive.
