High TG 20 Layer PCB Transformer Burid Hole ENIG 3.95+/-10%Mm
  • High TG 20 Layer PCB Transformer Burid Hole ENIG 3.95+/-10%Mm

High TG 20 Layer PCB Transformer Burid Hole ENIG 3.95+/-10%Mm

Place of Origin China
Brand Name Customized
Certification UL,ISO9001
Product Details
Layer:
20L
Materail:
IT180A, High TG
Thickness:
3.95+/-10%mm
Speical:
Burid Hole, PI,
Surface Finish:
ENIG
Name:
PCB Winding
Highlight:

High TG PCB Transformer

,

PCB Transformer Burid Hole

,

20 Layer PCB ENIG

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Vaccum package
Delivery Time
Negotiable
Payment Terms
T/T
Product Description

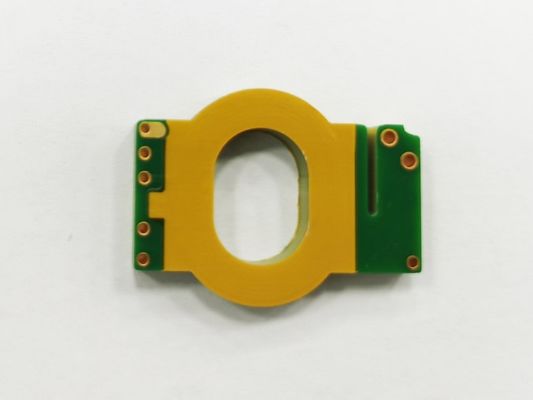

20L/high TG/transformer PCB/3.95+/-10%mm/Burid hole/PI/ENIG



Winding PCB is normally applied to transformer product and adapter. It is widely applied the consumer,communication, automotive industry.


1. They required high technology requriement such as:
1) Material:high TG material: Critical RC% and copper foil choose.
2)Copper thickness: heavy copper 3OZ to 10OZ,
3) Special technology burid holes, depth drilling, PI materail used etc.
4)) Resin plugging+hole plated over,
5)Special soldermask to be taken high voltage.


2. The PCB needs to be tested as following:
1) Resistance test, inductance test, high voltage test and even capacitance test, Q value etc.

2) Reliability test: CAF test, solderability test,thermal shock test, temperature cycling test etc.



How to know the dielectric thickness can be withstand voltage value? Is the same voltage level with different kind materails?



Call me,let us disscuss their details.
